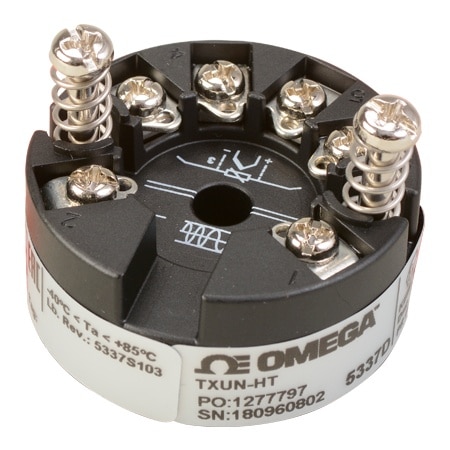

OMEGA TXUN-HT 2-Wire Transmitter w/ Hart Protocol Enabled | 2 Analog Inputs (Thermocouple, RTD, Resistance, Voltage, B, E, J, K, L, N, R, S, T, U, W3, W5, LR)

Drop: 8 Vdc

Height: 20.2 mm

Offset: 50% of selected max. value

Weight: 50 g

Accuracy: ± 0.05 %

Diameter: 44 mm

RTD Type: Pt50,Pt100,Pt200,Pt500,Pt1000,Ni50,Pt100,Pt120,Pt1000

Approvals: "ATEX 2014/34/EU: KEMA 03ATEX1537 IECEx: KEM 10.0083X FM: FM17US0013X CSA: 1125003 INMETRO:NCC 12.0844 X EAC Ex TR-CU 012/2011: RU C-DK.GB08.V.00410 DNV-GL Marine: Stand. f. Certific. No. 2.4 SIL: Hardware assessed for use in SIL applications Authority Requirements: EMC: 2014/30/EU EAC: TR-CU 020/2011 "

Isolation: 1.5 kVAC / 50 VAC

Vibration: IEC 60068-2-6;2 to 25 Hz: ±1.6 mm;25 to 100 Hz: ±4 g

Input Type: Thermocouple, RTD, Resistance, Voltage

Output Load: ≤ (Vsupply - 8)/0.023 Ω

Sensor Type: Transmitter

EMC Standard: NAMUR NE 21

Probe Length: 0 mm

Accuracy Note: ≤ ±0.05% of span

Output Detail: Min. Signal Range: 16 mA NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA

Response Time: 1 to 60 sec

ADC Resolution: 22 bit

DAC Resolution: 16 bit

Humidity Range: Up to 95% non-condensing

Sensor Current: 0.2 mA

Supply Voltage: 8 to 30 Vdc

Sheath Material: N/A

Cable Resistance: 5 Ω

Input Resistance: 10 MΩ

Update Rate, Max: 440 ms

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP00, IP68

Supply Power Type: DC

Thermocouple Type: B, E, J, K, L, N, R, S, T, U, W3, W5, LR

Signal/Noise Ratio: > 60 dB

Input Control Signal: -800 to 800 mV

Additional Features 1: HART Protocol Revisions: HART 7 and HART 5

Electrical Connection: Screw Terminal

Programmable Functions: Loop Link and HART

Sensor Break Detection: 3.5 to 23 mA

Wiring/Connector Table: 2-, 3-, or 4-Wire

Temperature Coefficient: ≤ ±0.005%/°C

Temperature Input Range: N/A

Cold Junction Compensation: Constant, internal or external via a Pt100 or Ni100 sensor

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Calibration Temperature, Max: 28 °C

Calibration Temperature, Min: 20 °C

Datasheet
