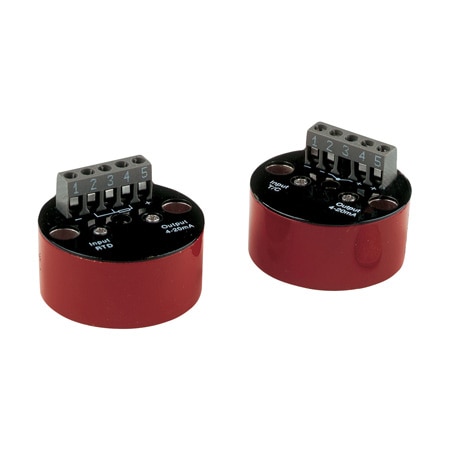

OMEGA TX253 Head Mount R and S type TC Transmitter w/ 4 to 20 mA Output (Thermocouple, R,S, R: 0 to 1750 °C;S: 0 to 1750 °C)

Height: 33 mm

Weight: 50 g

Accuracy: ± 0.1 %

Diameter: 44 mm

Linearity: <0.08%

Span, Min: 600°C

Input Type: Thermocouple

Calibration: 2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers

Output Load: (Vsupply - 10)/0.02

Sensor Type: Transmitter

Probe Length: 0 mm

Accuracy Note: 0.1% of span

Mounting Note: 5 mm ID suitable for 8-32 screw

Output Detail: 4 to 20 mA, 28 mA limited

Humidity Range: 5 to 95% RH, non-condensing

Setup Controls: 2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers

Supply Voltage: 10 to 36 Vdc

Dimensions Note: 33 H x 44 mm diameter including the terminal block

Sheath Material: N/A

Housing Material: Diecast zinc alloy

Electrical Output: 4 to 20 mA

Supply Power Note: 10 to 36 Vdc (24 Vdc recommended)

Supply Power Type: DC

Thermocouple Type: R,S

Supply Power Effects: <0.001%/1V

Electrical Connection: Screw Terminal

Temperature Stability: <0.01% of span/1°C

Temperature Input Range: R: 0 to 1750 °C;S: 0 to 1750 °C

Cold Junction Compensation: ±0.9°C (±1.6°F) typical (3°C [5.4°F] for R and S) for 0 to 60°C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Mounting Screw Hole Diameter: 5 mm
