Applications
Airport, Customs, Train Stations, Shopping Mall, School, Hospital, Hotel, Law Enforcement
Church, Theatre, Museum, Stadium, Factory, Exhibition Center, Government Office, etc.
Product Introduction

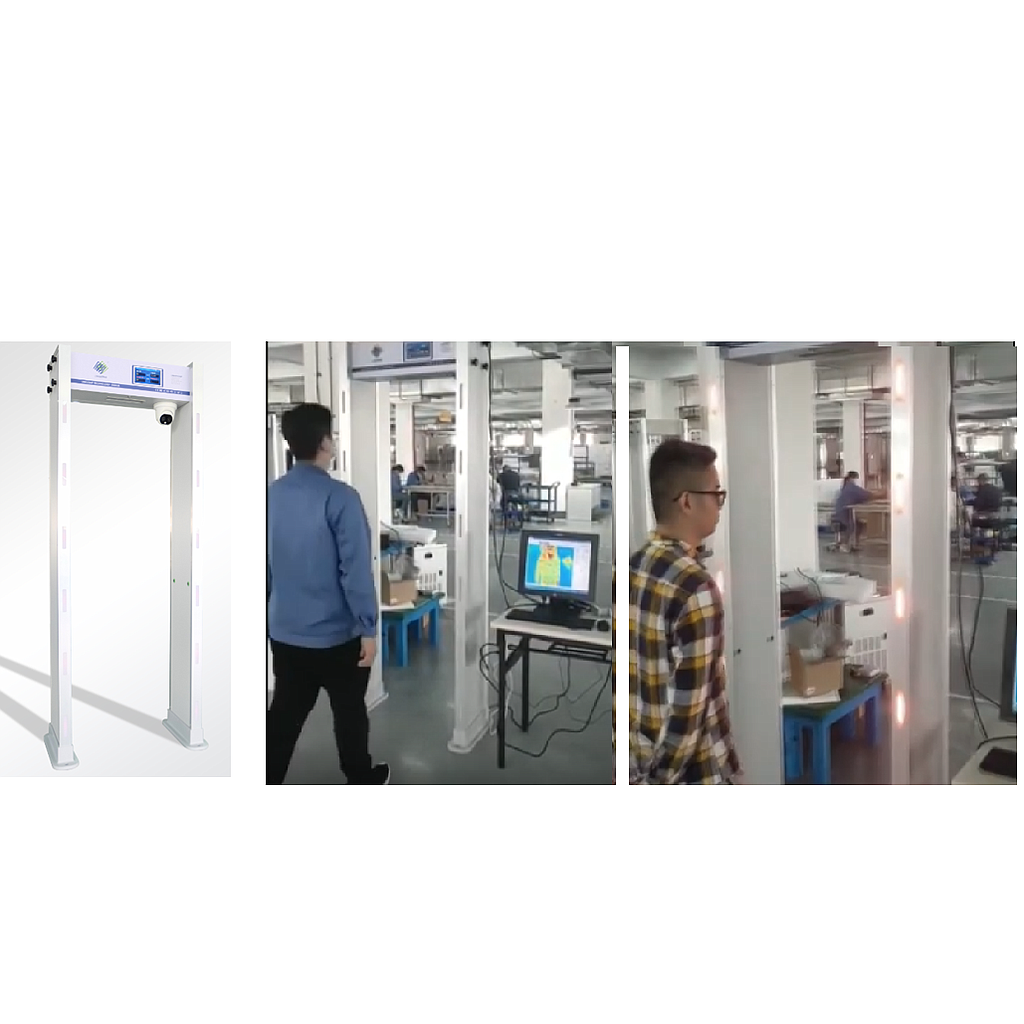

UNX200 is an automatic Infrared Imaging Camera temperature detector and alarming system adopts military-grade infrared technology, which can screen people who pass through the walk-through door frame for non-inductive infrared body temperature. The alarming system will be automatically triggered once a higher body temperature is detected than the pre-setting threshold. It can screen people with fever in large scale, improve the prevention and control efficiency of the epidemic, and greatly reduce the risk of infection
Technical Specifications
l High precise body temperature detection and auto alarming, response time < 0.5s
l Temperature accuracy: ±0.3℃, two infrared sensors equips with different height
l Safety temperature threshold with self-calibration( standard: 37.3 °C, adjustable)
l Pass through (in & out ) counting, auto alarming with sound and LED lights
l Light weight and strong anti-interference, stable performance
l Automatic self-calibration, pre-setting the alarm threshold, decrease manual operation and improve efficiency
l Plug and play with modular design parts, easy to install and troubleshoot
l Low rate of false alarm with cutting-edge digital signal processing technology
l One button operation to restore factory default settings
l International A-level measurement capability, stable working
l Extensibility of the integration with Metal Detector, turnstile barrier gate, finger-print access control, CCTV, and ID reader ( Optional)
l Networking management for multi-terminals with real time monitoring and data retrieving (Optional)
LCD Display | 7”Colors TFT LCD |
Temperature accuracy | ±0.3℃, |
Power consumption | ＜ 15W |
Temp. Detecting Range | 25 ℃~ 43 ℃ |
External Power | AC 110~240V, 50/60HZ |
Net Weight | 45KG |
Gross Weight | 52KG |
Working Environment | No direct sunlight, No wind |
Operating humidity | 99%，non-condensing |
Inner Size | 1983（H）× 702 （W）× 334 （L）（mm） |
Outline size | 2199（H）× 818 （W）× 334 （L）（mm） |
Package Size(2 cartons) | 820*480*260mm (Control Unit) 2340*830*260mm (Frame Panel) |
Certifications | CE, FDA, ISO9001, ISO14001, OSHAS18001, Chinese GB |
