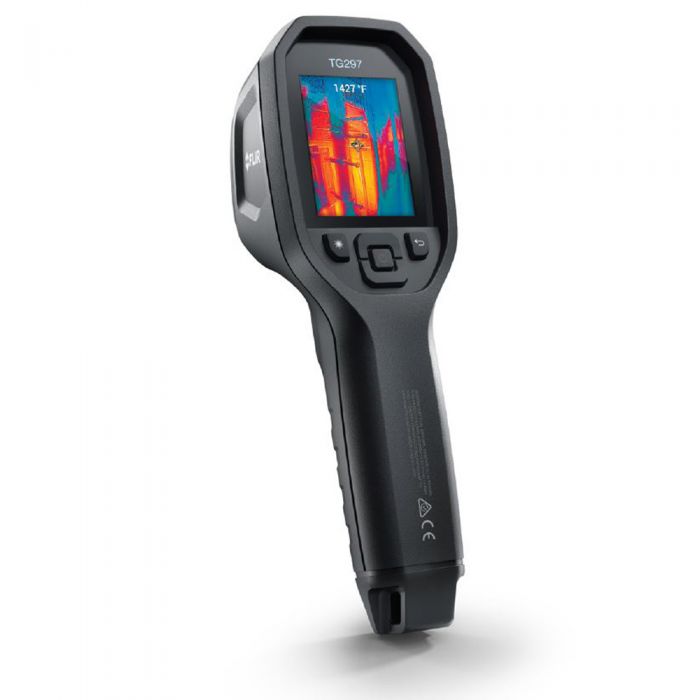

FLIR TG297 THERMAL CAMERA

General Specifications

Accuracy:±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F)

Detector Type:Focal plane array (FPA), uncooled microbolometer

Field of view (FOV):57° × 44°

IR Resolution:160 × 120 pixels

Laser:Class 1 laser indicates the temperature measurement area; button-activated

Object Temperature Range:-25°C to 1030°C (-13°F to 1886°F)

Thermal Sensitivity/NETD:< 70 mK

Built-in Illuminator LED:100 lumens, 6500 K flashlight

FLIR ToolsCompatible

COMPLIANCE & CERTIFICATIONS

Certifications:CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan

CONNECTIONS & COMMUNICATIONS

Interface:USB 2.0, Bluetooth

Storage Media:eMMC 4 GB

USB:USB Type-C: data transfer/power

USB - Standard:USB 2.0 High Speed

ENVIRONMENTAL

Drop testDesigned for 2 m (6.6 ft)

EMC

EN 61000-6-3

EN 61000-6-2

FCC 47 CFR Part 15 Class B

Emissivity Correction:Yes: 4 preset levels with custom adjustment of 0.1–0.99

Encapsulation:IP 54 (IEC60529)

Humidity (Operating and Storage):0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))

Operating Temperature: Range-10°C to 45°C (14°F to 113°F)

Radio Spectrum

ETSI EN 300 328

FCC Part 15.249

RSS-247 Issue 2

EN 301 489-1:2011

EN 301 489-17:2009

Safety:CE/CB/EN61010/UL

Shock:25 g (IEC 60068-2-27)

Storage Temperature Range:-30°C to 55°C (-22°F to 131°F)

Tripod Mounting:1/4 in.-20 on handle bottom

Vibration:2 g (IEC 60068-2-6)

IMAGING & OPTICAL

Built-in Digital Camera:Yes

Color palettes:Iron, Rainbow, White hot, Black hot, Arctic, Lava

Detector Pitch:12 µm

Digital image enhancement:Yes

Focus:Focus free

Gallery:Yes

Image Adjustment:Automatic

Image Frequency:8.7 Hz

Image Modes

MSX® (Multi Spectral Dynamic Imaging)

Visual with temperature reading

Minimum Focus Distance:0.3 m (0.98 ft)

Minimum Measurement Distance:0.26 m (0.85 ft)

Spectral Range:7.5 - 14 µm

Digital Camera Resolution/FOV2 MP (1600 × 1200 pixels), 71° × 56° FOV

MEASUREMENT & ANALYSIS

Center spot:Yes

IR Temperature Resolution:0.1°C (0.2°F)

IR Thermometer Measurement Acquisition:Continuous scanning

Languages:Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish.

Set-up Commands

Local adaptation of units, language, date, and time formats

Screen brightness (high, medium, low)

Gallery, deletion of images

Spot Meter:Center spot on/off

METER DATA

Camera size (L x W x H):210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)

Camera weight incl battery:0.394 kg (13.9 oz)

Cover Glass: MaterialOptical grade silicon

Display:320 × 240 pixel, 2.4 in color LCD

POWER

Battery operating time:5 hours continuous scanning, 4.5 hours with laser on

Battery Type:Rechargeable Li ion battery

Battery voltage:3.7 V

Charging system:Battery is charged inside the camera

Charging Temperature:0°C to 45°C (32°F to 113°F)

Charging Time:4 hours to 90%, 6 hours to 100%

Power ManagementAdjustable: off, 5 min., 15 min., 30 min.

Battery charge life:30 days minimum

SHIPPING INFORMATION

Includes:TG297, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch

STORAGE MEDIA

Image Storage Capacity:4 GB for storage of up to 50,000 pictures

Memory Type:Internal

Saved image format:JPEG
