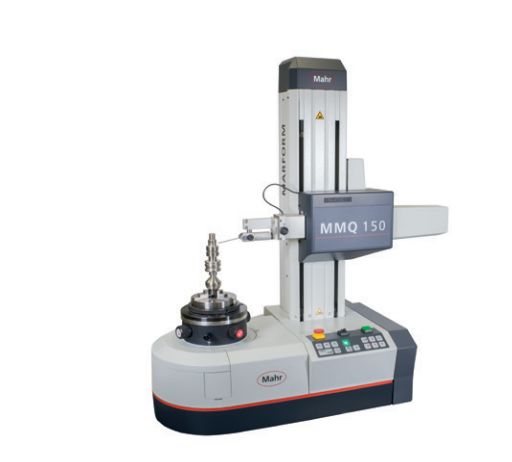

Mahr MMQ 150 Compact Form Measuring Machine (200N,1-6rpm)

Roundness deviation (µm+µm/mm measuring height)*:0,015 + 0,0003

Axial runout deviation (µm+µm/mm measuring radius)*: 0.02 + 0.0001

Table diameter (mm): 160

Table load capacity, centered (N): 200

Speed (rpm) 50 Hz / 60 Hz: 1-6

PMeasuring path, motorized Z (mm):250

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 1

Measuring speed (mm/s), Z axis; 0.5-30

Positioning speed (mm/s), Z axis: 0.5-50

Positioning path (mm), X axis: 150, motorized

Positioning speed (mm/s), X axis: 0.5-30

* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.

OPTIONS:

• Rim chuck Ø 100 mm

• Various additional clamps

• Commutator analysis

• Vibrational velocity analysis

• Upgrade to MarWin AdvancedForm

• 22” touch screen instead of 24” monitor

• Probe arms of various lengths and with various stylus ball geometries

• Various double probe arms

• Various calibration standards

• Various equipment tables, some with vibration compensation
