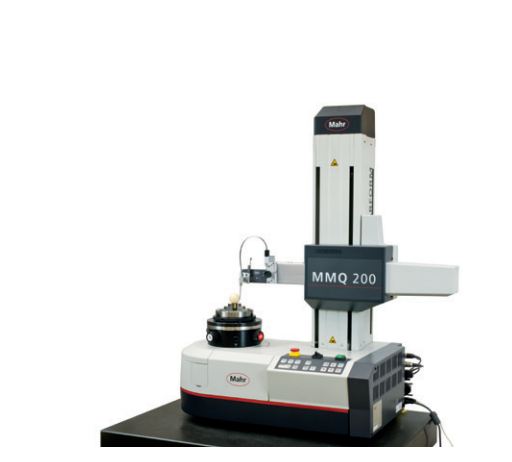

Mahr MMQ 200 Compact Form Measuring Machine (250mm)

Roundness deviation (µm+µm/mm measuring height)*: 0,015 + 0,0003

Axial runout deviation (µm+µm/mm measuring radius)*: 0,02 + 0,0001

Centering and tilting table: manual

Table diameter (mm): 160

Table load capacity, centered (N): 200

Speed (rpm) 50 Hz / 60 Hz: 0.2-15

Measuring path, motorized Z (mm): 250

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 0.5

Measuring speed (mm/s), Z axis: 0.5-30

Positioning speed (mm/s), Z axis: 0,5-100

Positioning path (mm), X axis: 150, motorized

Positioning speed (mm/s), X axis: 0,5-30

* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.

OPTIONS:

• 22” touchscreen TFT monitor instead of the 24” standard TFT

• Roughness measurement and evaluation with MMQ 200/T7W

• MarWin Software, diameter evaluation

• Various clamps

• Probe arms of various lengths and with various stylus ball geometries

• Various double probe arms

• Various calibration standards
