Number of Voltage Input Channels: 4
Maximum Sample Rate: 500 MS/s
Analog Input Resolution: 16 bits
Analog Input Coupling: AC
Analog Input Bandwidth: 225 MHz
Analog Input Voltage Range: -1 V to 1 V
FPGA: Kintex UltraScale KU040
Dynamic RAM (DRAM): 4 GB

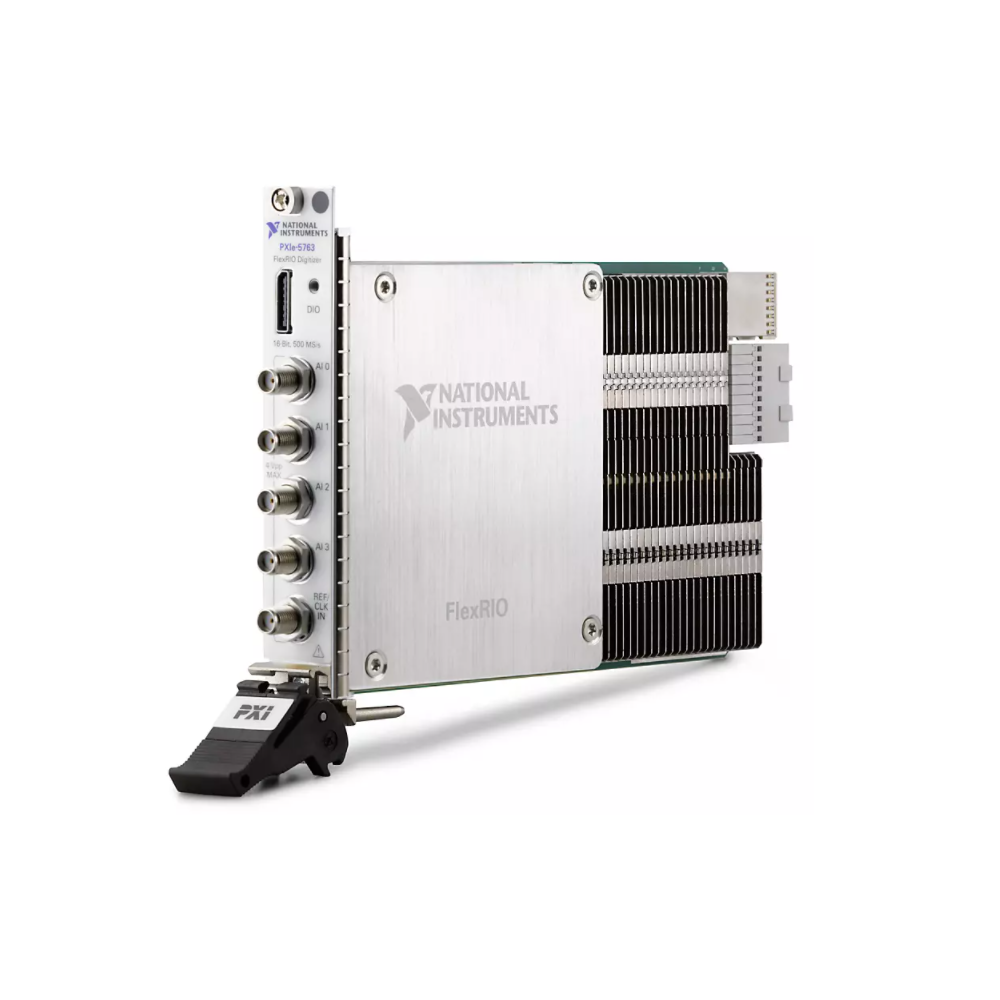

Combines A/D converter technologies with Xilinx FPGAs for applications that demand real-time signal processing and high-performance analog input.
PXI FlexRIO Digitizers feature high-performance analog-to-digital converters with lightweight analog front-ends designed to maximize sample rate, bandwidth, and dynamic range. These modules use FPGAs from Xilinx alongside LabVIEW and Vivado programming options for custom algorithm implementation and real-time signal processing. For applications that require high channel counts, PXI FlexRIO Digitizers use the NI-TClk API and the timing and synchronization capabilities of PXI to achieve sub-sample synchronization between multiple modules in a chassis. These modules also feature an auxiliary I/O connector with GPIO for triggering or digital interfacing and the option for high-speed serial communication.
