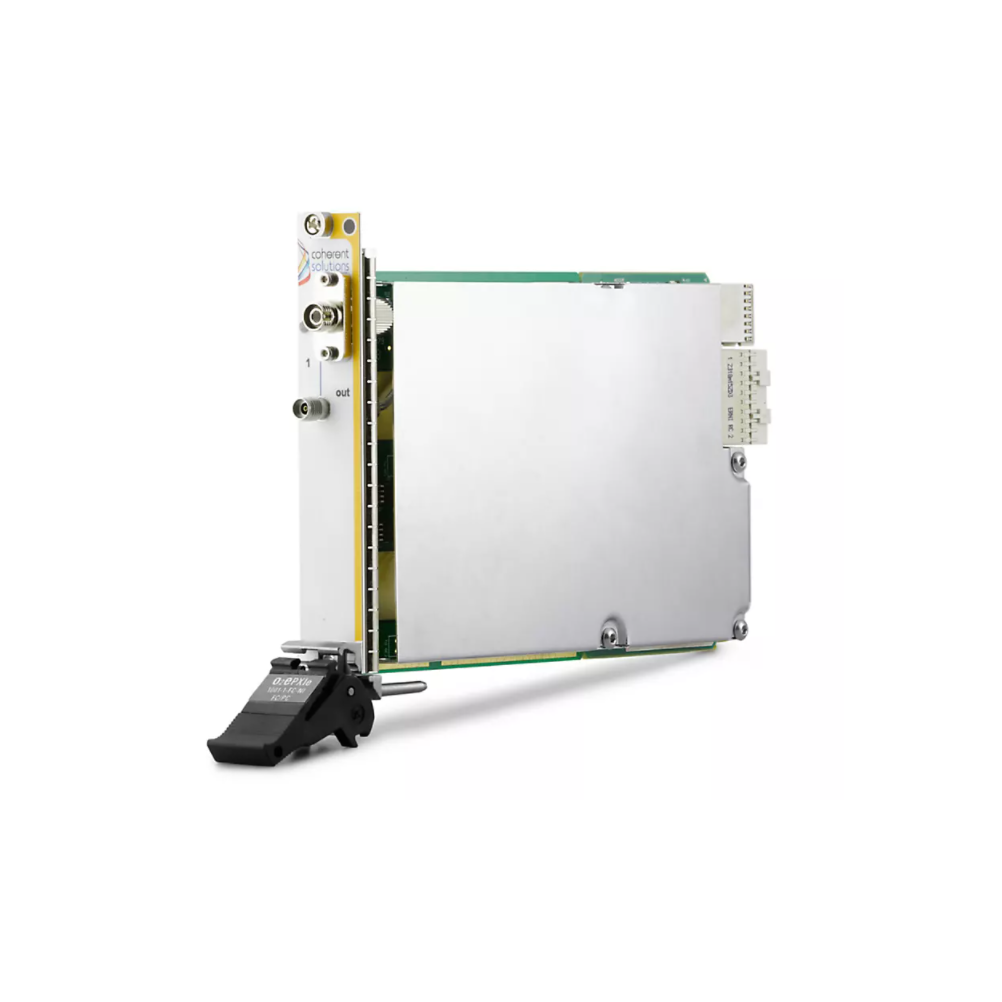

O2E 10 GHz 1 Ch DC Multimode FC Connector
Bus Connection: PXIe
PXI: slots 1
Dimensions (HxWxD): 130 mm x 20mm x 215 mm (5.1” x 0.8” x 8.5”)
Weight: ~ 1 kg (~2.2 lbs)
Operating temperature range: 5 °C to 45 °C (41 °F to 113 °F)
Storage temperature range: -40 °C to 70 °C (-40 °F to 158 °F)
Bandwidth
9.5 GHz (typ)
8.5 GHz (min)
Wavelength: 750 to 1650 nm
Calibrated wavelength: 850, 1310, 1490, 1550
Optical connector type: FC/PC, FC/APC, SC/APC, SC/PC
Number of channels: 1 or 2
RF coupling: DC
RF connector: SMA (3.5 mm)
RF impedance: 50 ohms
Fiber: 62.5u core MMF
Damage level peak power: 7 dBm
Optical return loss: 16 dB
PDL at 1550 nm: _
Conversion gain
430 V/W (typ) at 1550 nm
450 V/W (typ) at 1310 nm
250 V/W (typ) at 850 nm
Low frequency cutoff: 0 Hz
Noise equivalent power: 0.15 fW/Hz
Average power reading: Yes
Converts broadband light signals to electricity for optical test applications.
The PXI Optical-to-Electrical Converter provides high-bandwidth optical-to-electrical (OE) functionality. You can choose from both AC- and DC-coupled models with up to two channels in a variety of conversion gain and operating wavelength ranges. The PXI Optical to Electrical Converter is ideal for reliable testing in manufacturing or research and development environments.
