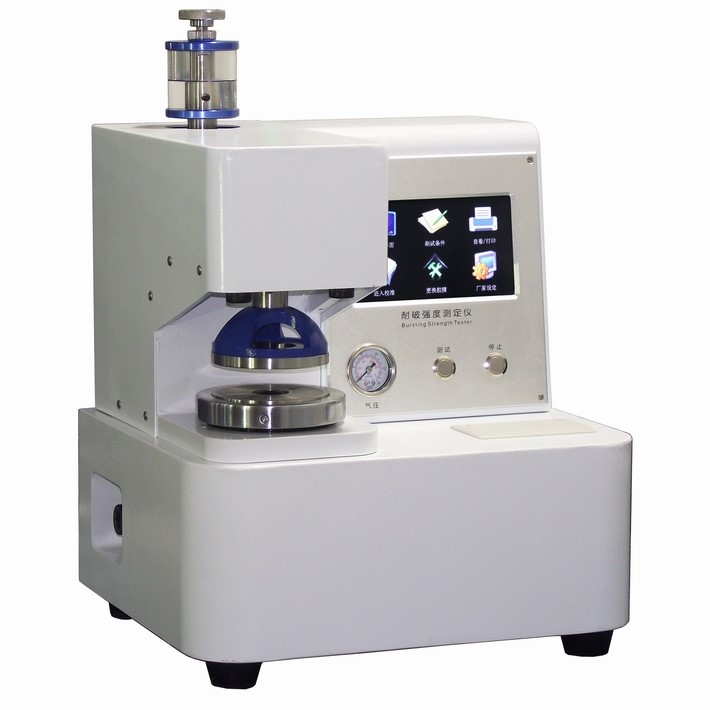

Specification
Type: Touched screen control,have test curve.
Measuring range: low pressure paper: 50 ~ 1400 kpa, high pressure paper board:150-5600kpa
Accuracy: ≤±0.5%
Resolution: 0.01 kpa
Deformation error: ≤±1 mm
Oil feeding speed:low pressure:95±5mm/ml, high pressure 175±5mm/ml
Compress plate diameter: low pressure: Up plate diameter 30.5±0.1mm Down plate:33.1±0.1mm
High pressure: up plate diameter 31.5±0.1mm Down plate: 31.1±0.1mm
Rubber pressure: low pressure: (9±0.2)mm, pressure is (30±5kpa)
High pressure: 10mm–(170-220kpa),18mm–(250-350)kpa
Clamping force: 0-1200kpa (adjustable)
Unit choose: kpa, kg/cm3, lbf/in2
Controller: 7 inch Color Touched Screen,have test curve
Data save: can save above 100 groups
Print output: Thermal paper printing output
Weight: 65KG
Application: low pressure type suitable for: paper, kraft paper, white and white card paper, grey board paper, single-layer board, corrugated base paper, Double adhesive paper, toilet paper, aluminum foil copper foil, cigarette box, color box, etc
High pressure type suitable for: carton, cardboard, corrugated board, color box, cigarette pack, beer box, shoe box, milk carton, plastic hollow board, leather, fabric, fabric, high strength aluminum foil copper foil, etc.
Application extension: low strength plastic board, fireproof material, cloth, fiber material
