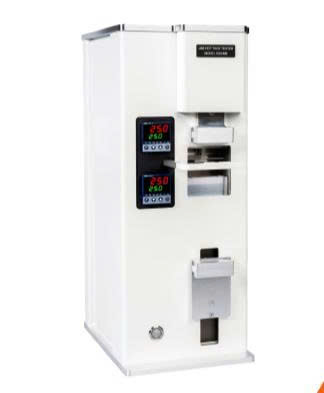

Karg HT 5000 Hot-Tack Tester (0.05 ~ 2.0 N/mm2, 21 - 260°C)

Sealing specification

Sealing bars: "2 NIPTEF, 5 x 50 / 10 x 50"

Specimen width [mm]: max. 40

Specimen thickness [mm]: max. 1

Sealing time [s]: 0,1 … 20

Sealing temperature [°C]: 21 - 260

Sealing pressure [N/mm2]: 0.05 … 2.0

Pealing specification

Cooling time [s]: 0.1 …. 999

Peeling speed [mm/s]: 8 … 600

Peeling control Servomotor

Specimen length [mm]: min. 250

Hot tack force measurement

Measurement range [N]: 0 … 45 (optional 450)

Sampling speed [mm/s]: max. 20

ADC resolution: 12 bit

Dimension

Width [mm]: 220

Height [mm]: 287

Depth [mm]: 556

Weight [kg]: approx. 14

Connections

Rated Voltage [V]: 90 - 264

Power frequency [Hz]: 50/60

Nominal power [kW]: 0.15

Phase (Nominal voltage) [ph]: 1~

Compressed Air [bar]: 6 - 8
