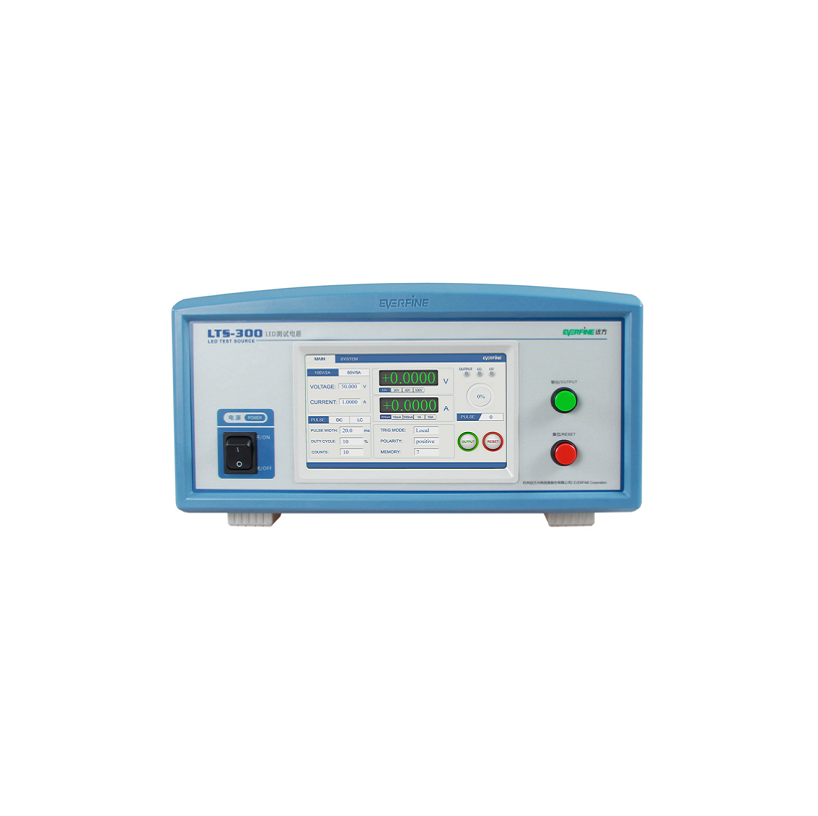

EVERFINE LTS-300 LED Test Source

Maximum output

DC:100V@2A、50V@5A

PULSE:100V@4A、50V@10A

Current output capacity

DC:±(0.2%Setting + 0.1%Range)

PULSE:±(0.4%Setting + 0.2%Range)

Current measurement accuracy

DC:±(0.1%Reading + 0.1%Range)

PULSE:±(0.2%Reading + 0.2%Range)

Voltage measurement accuracy

DC:±(0.1%Reading + 0.1%Range)

PULSE:±(0.2%Reading + 0.2%Range)

Shortest Current rising time: 5μS

Pulse current property

Minimum pulse bandwidth:0.1ms

Pulse bandwidth resolution:0.1ms

Communication interface: RS-232、USB
