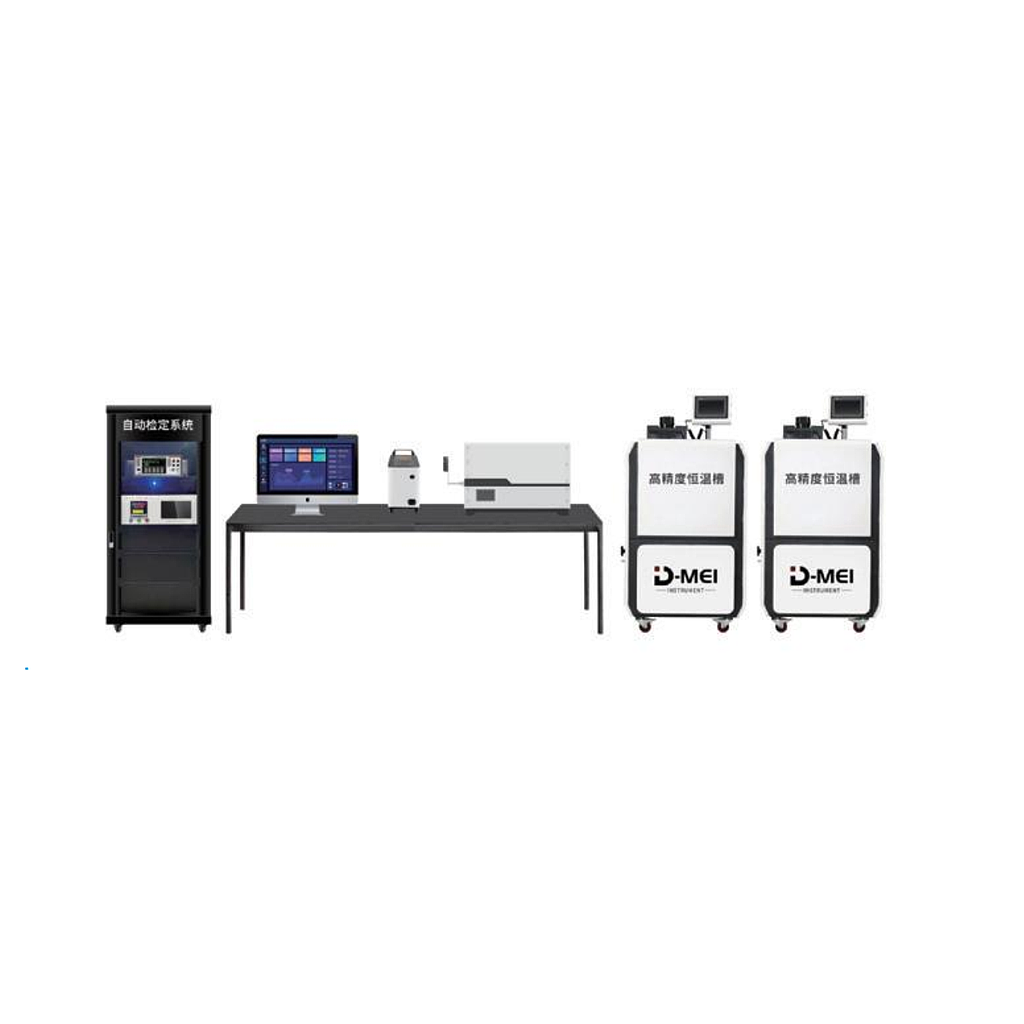

D-MEI DY-01 Thermocouple and Thermal Resistance Automatic Calibration System

Scan switch parasitic potential ≤ 0.4μV

Resolution: the highest potential measurement resolution is 0.1μV; the highest resistance measurement resolution is 0.1mΩ

Accuracy: Electric potential measurement uncertainty ≤ 0.01%; Resistance measurement uncertainty ≤ 0.01%

Thermocouple calibration uncertainty ≤ 1.2℃ ; Thermal resistance calibration uncertainty ≤ 0.05℃

Cold end automatic compensation: when the cold end temperature is within the range of (20±10)℃ , the compensation error is ≤0.2℃

Calibration temperature: thermocouple 300 ~ 1200℃ ; thermal resistance -40 ~ 300℃ (including low temperature thermocouple)

Number of verification pieces: 1 to 10 thermocouples can be verified at the same time; 1 to 10 thermal resistors can be verified at the same time. The thermal resistance allows multiple batches of verification at the same temperature point.

Verifiable thermocouple indexing tables: S, K, E, R, B, T, N, J; Verifiable thermal resistance indexing tables: Pt100, Pt50, Pt10, Cu100, Cu50, BA1, BA2, G
