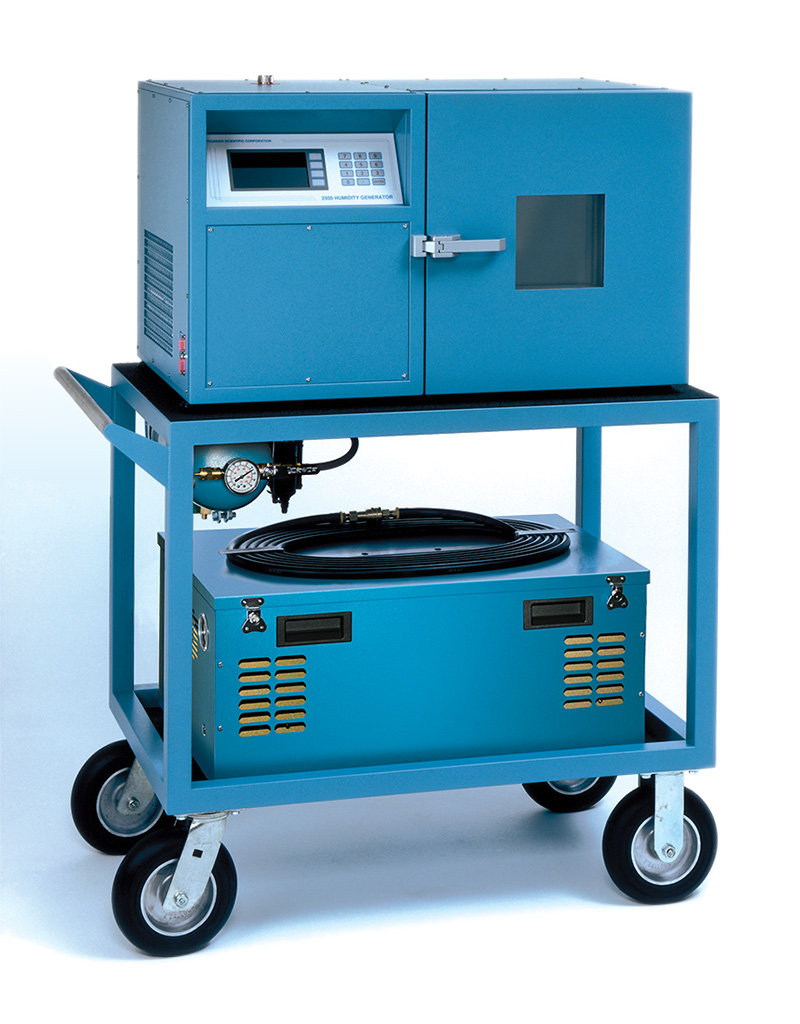

Thunder Scientific 2500 Humidity Generation System (10 ~ 95%)

SPECIFICATIONS

Relative Humidity Range: 10 to 95 %RH

Relative Humidity Uncertainty: @ P c T c 0.5 %RH

Chamber Fluid Temperature Range: 0 to 70 ºC

Chamber Fluid Temperature Range: (Optional) –10 to 70 ºC

Chamber Temperature Uniformity: ±0.1 ºC

Chamber/Saturation Temperature Uncertainty: 0.06 ºC

Pre-Saturator/Expansion Valve Temperature Uncertainty: 0.20 ºC

Chamber Pressure Uncertainty: 0.15% FS

Chamber Pressure Range: Ambient

Display Resolution: 0.01

Gas Flow Rate Range: 5 to 20 L/min

Gas Flow Rate Resolution: 0.02 L/min

Gas Flow Rate Uncertainty: 2% FS

Gas Type: Air or Nitrogen

Gas Pressure Rating (MAWP): 175 psiG

Heating: Stainless Steel Immersion Heater

Heating/Cooling Rate: 2.5 Minutes Per ºC Average

Cooling: 1/3 hp R-134A Refrigeration System

Chamber Window: 6" H x 6" W (152 mm x 152 mm)

Chamber Dimensions: 15" H x 15" W x 12" D (38.1 cm x 38.1 cm x 30.5 cm)

Physical Dimensions: 22" H x 36" W x 23" D (55.8 cm x 91.4 cm x 58.4 cm)

Physical Dimensions of Cart: 33.25" H x 43" W x 26" D (84.5 cm x 109.2 cm x 66.0 cm)

Physical Dimensions 2500 with Cart: 56" H x 43" W x 26" D (142 cm x 109 cm x 66 cm)

Access Port: SEE TABLE A

UTILITIES

Electrical Power For ST Model: 210-240 V~, 8 A, 60 Hz

Electrical Power For ST Model: (Optional) 200-230 V~, 8 A, 50 Hz

Air Compressor: 100-120 V~, 10 A, 50/60 Hz

Air Compressor: (Optional) 220-240 V~, 6.3 A, 50/60 Hz

Air Supply (External): Clean Oil Free Instrument Air @ 175 psiG & 20 L/min

ENVIRONMENTAL

Operating Temperature: 15 to 30 °C

Storage Temperature: 0 to 50 °C

Humidity: 5 to 95% Non-condensing

Table A
