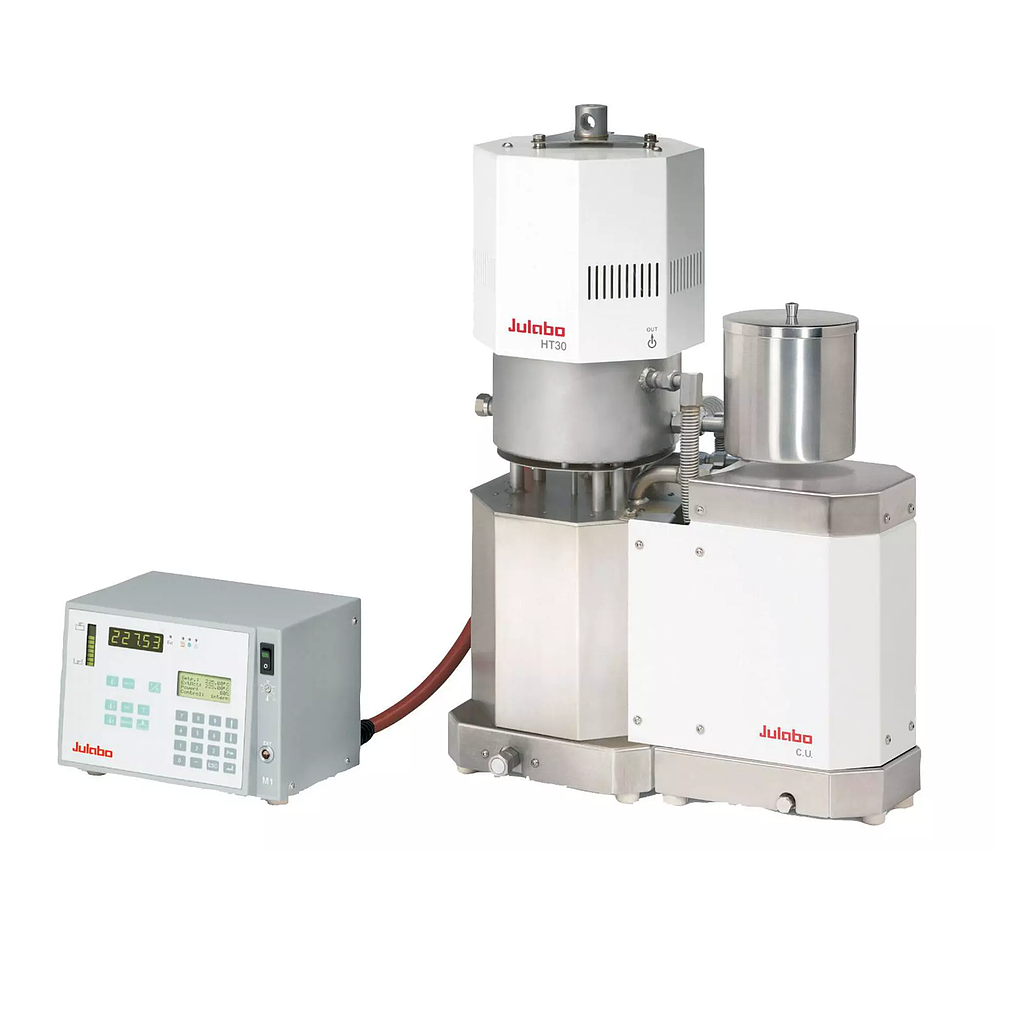

Julabo HT30-M1-C.U. Highly Dynamic Temperature Control System (+40 ... +400 °C)

Dimensions and volumes:

Dimensions (W × L × H): 16.9 x 9.1 x 22.8 in.

Internal usable expansion volume: 2 l

Minimal process volume: 1 l

Active heat exchanger volume: 1.5 l

Weight: 77.2 lbs

Pump connections: M16x1 male

Temperature values:

Working temperature range: +40 ... +400 °C

Temperature stability: ±0.01 ... ±0.1 °C

Temperature display resolution: 0.01 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 3 kW

Pump capacity flow pressure: 14 ... 18 l/min

Circulation capacity pressure: 11.6 ... 17.4 psi

Viscosity max.: 30 cSt

Power consumption: 15 A

Electronics:

Interfaces: Profibus optional / RS232 / RS485

External pt100 sensor connection: integrated

Integrated programmer: 6x60 steps

Temperature control: ICC

Temperature display: LED

Temperature setting: Keypad
