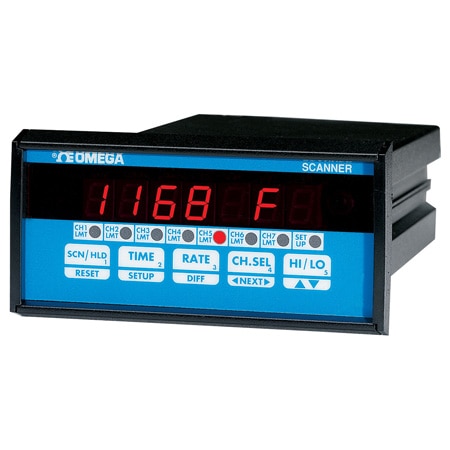

OMEGA DPS3107-RTD-2-3 1/8 DIN 4 & 7-Channel Temp. / Process Scanner with Opt. Outputs (None, 1/8 DIN, 9 to 15 Vdc)

Scale: Digital

Width: 112 mm

Height: 57 mm

Length: 178 mm

Weight: 1.2 kg

Accuracy: ± 0.5 %

Deadband: 2 to full scale, programmable

Scan Rate: Fixed, 2 channels/sec

Input Type: RTD

Resolution: 0.025% FS

Form factor: 1/8 DIN

Panel Depth: 180 mm

Display Type: 4 Digit LED

Accuracy Note: 0.5% reading (J, K, T, E: 1°C; S: 2°C; R, B: 3°C)

Supply Voltage: 9 to 15 Vdc

Number of Inputs: 1

Number of Relays: 7

Cutout Dimensions: 45 x 92 mm

Display Type Note: 4 Digit LED, Red

Supply Power Note: 120 Vac, 60 Hz; 240 Vac, 50 Hz (optional); 9 to 15 Vdc, 900 mA (optional)

Thermocouple Type: None

Number of Channels: 7

Cold Junction Error: 1°C (10 to 40°C)

Channel Display Time: 1 to 999 seconds per channel

Input Control Signal: 4 to 20 mA, 0 to 10 Vdc

Temperature Sensor Type: N/A

Material Construction Option: Dedicated Input

Retransmission/Analog Output: 7 Relays

Retransmission/Analog Output Note: Mechanical relay; 1 A @ 28 Vdc or 0.5 A @ 120 Vac, SPST, programmable as NO/NC, DC driver; 5 Vdc @ 50 mA; 1 alarm per channel
