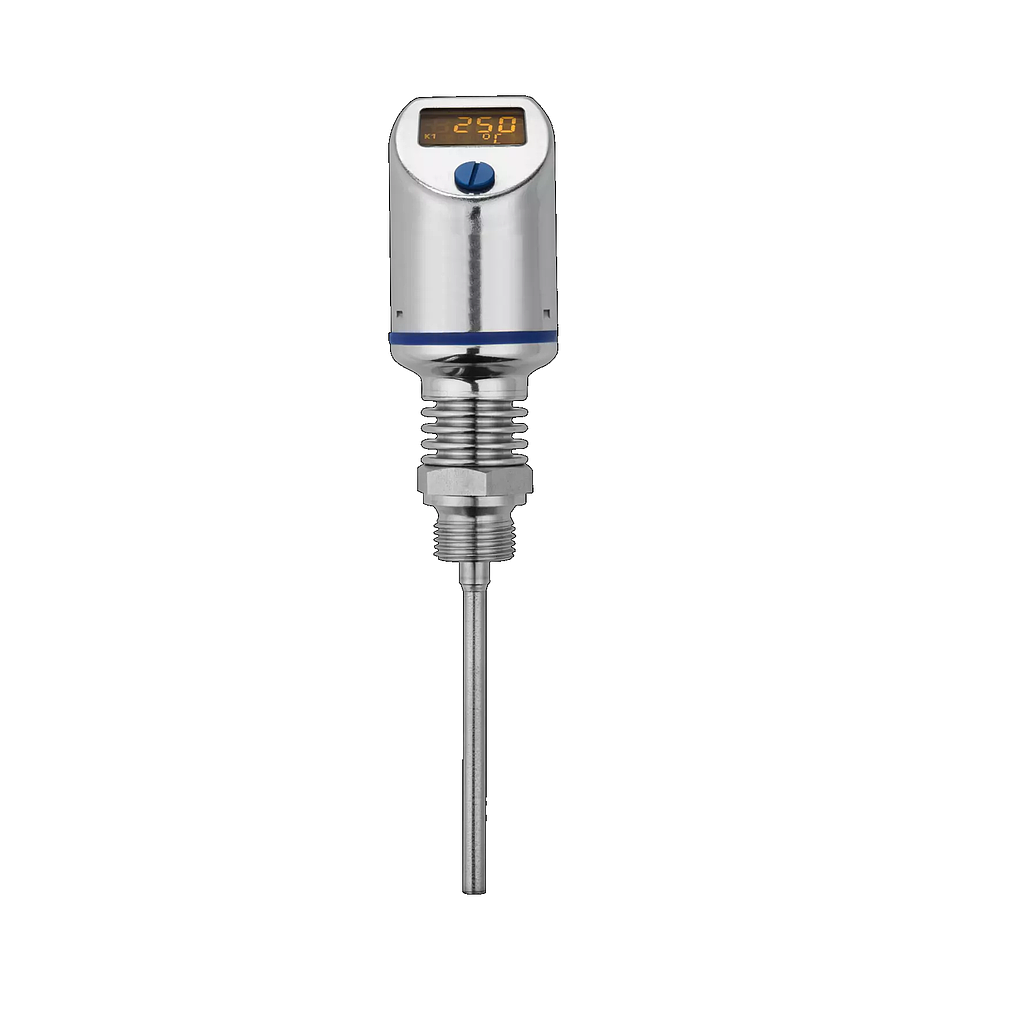

Jumo DELOS T 전자 온도 스위치 (-50~+150°C; EL: 150m; Part no: 00551003)
생산업체: Jumo Model: DELOS T P/N: 902940/10-8-370-1013-2-475-6-150-000/000 - 연락처
Order code: 902940/10-8-370-1013-2-475-6-150-000/000
Parts coming into contact with the medium are electrolytically polished, surface roughness ≤ 0.8 μm
Version: Standard with default settings
Operating temperature in °C: -50 to +150 °C
Measuring insert: 1 × Pt1000 in four-wire circuit
Tolerance class according to DIN EN 60751: Class A (standard)
Output: 1× PNP switching output and 1× analog output, 4 to 20 mA, user configurable
Protection tube diameter D in mm: Ø 6 mm
Insertion length EL in mm (50 to 1000 mm): 150 mm
Process connection PA: Without (smooth protection tube made out of stainless steel 316 L)
Extra codes: None
