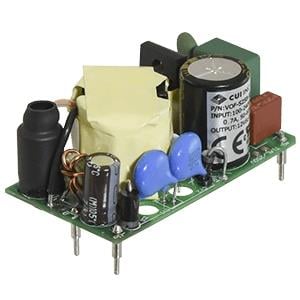

CUI Inc VOF-S25B-24 AC-DC Power Modules ac-dc, 25 W, 24 Vdc, single output, PCB mount
Manufacturer: CUI Inc Model: VOF-S25B-24 - Contact
Width: 27.94 mm
Height: 24.9 mm
Length: 50.8 mm
Industry: Industrial
Dimensions: 50.8 mm x 27.94 mm x 24.9 mm
Efficiency: 86 %
Unit Weight: 50.585 g
Output Power: 25 W
Input Voltage: 90 VAC to 264 VAC, 120 VDC to 370 VDC
Mounting Style: Through Hole
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 3 kVAC
Number of Outputs: 1 Output
Open Frame/Enclosed: Open Frame
Output Current-Channel 1: 1.05 A
Output Voltage-Channel 1: 24 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
