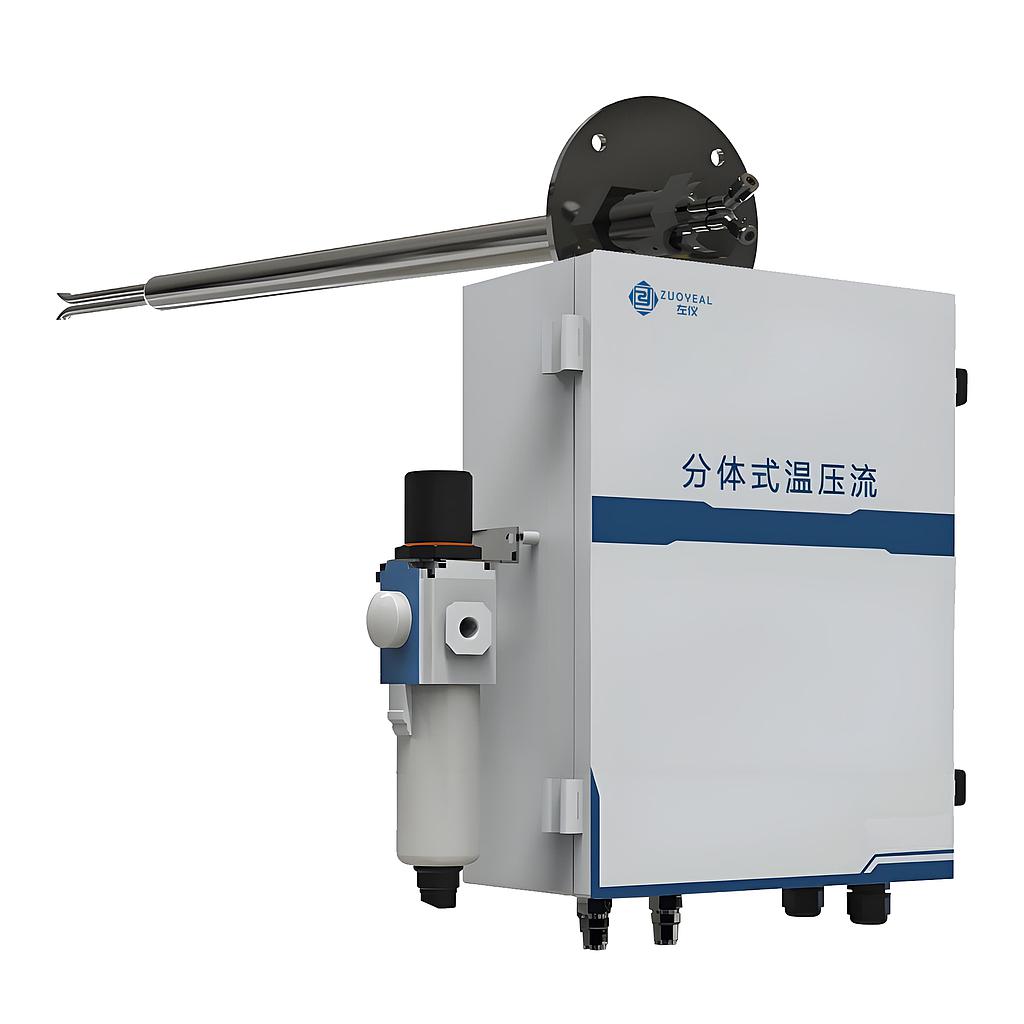

ZuoYeal ZY-TPF300 Temperature Pressure Velocity Flow Analyzer

Project: Indicators

Measurement principle: S-type pitot tube differential Pressure principle

Measuring range: Velocity: (0~40)m/s; Differential Pressure: (0~1000)Pa;  Temperature: (0～300~500)℃;  Pressure: (-10～+10)Kpa

Accuracy: Velocity≤±3% F.S;  Pressure≤±3% F.S;  Temperature≤±3℃

Response time: ≤1s（T90）

Flue gas temperature range: -40℃～500℃

Back blowing zero adjustment: Manual zero & Automatic zero

Communication Interface: 4 channels 4-20mA analog output/RS485 Optional

Installation method: Probe type, flange DN50 installation

power requirements: AC220V, 50Hz, 50W

Operating Temperature  : Analyzer part: -20℃～55℃

Dimensions   : Pitot tube: 0.6m, 1m, 1.2m, 1.5m (regular size, other sizes can be customized)

Pitot tube material: 304,316L,PTFE

Analyzer weight: 15kg
