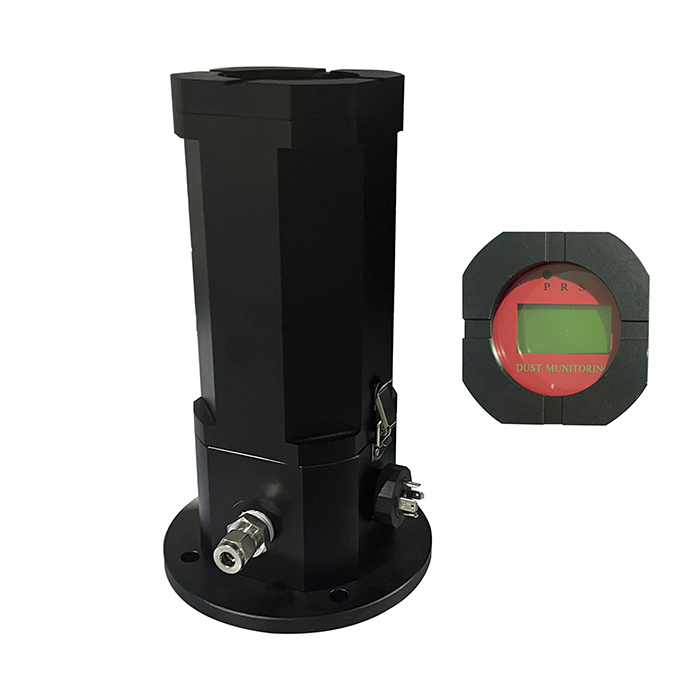

ZuoYeal LD200 Particulate Dust Online Analyzer (0-100, 500, 1000, 2000 mg / m3)

Mechanical Characteristic

Shell: All metal shell

External dimension: Dust meter (276× 158 × 158) mm (H × W× D)

Dust Meter Weight: 3.0 kg

Display mode 128×64 LCD

Optical Characteristics

Working wavelength: (650 ± 20) nm

Technical Parameter

Measurement range: (0-100, 500, 1000, 2000) mg / m3, can be set.

Zero drift: ± 2% F.S. / 24h

Range drift: ± 2% F.S. / 24h

Indication error: ± 15% (weighing method)

Response time: ≤ 10s

Flue diameter: (0.5-20) m

Power DC: 24 V

Environmental Working Conditions

Working temperature: (- 20 ～+ 50) ℃. 0~100% R.H. (non condensing)

Interface: Signal Analog output: (4-20) mA
