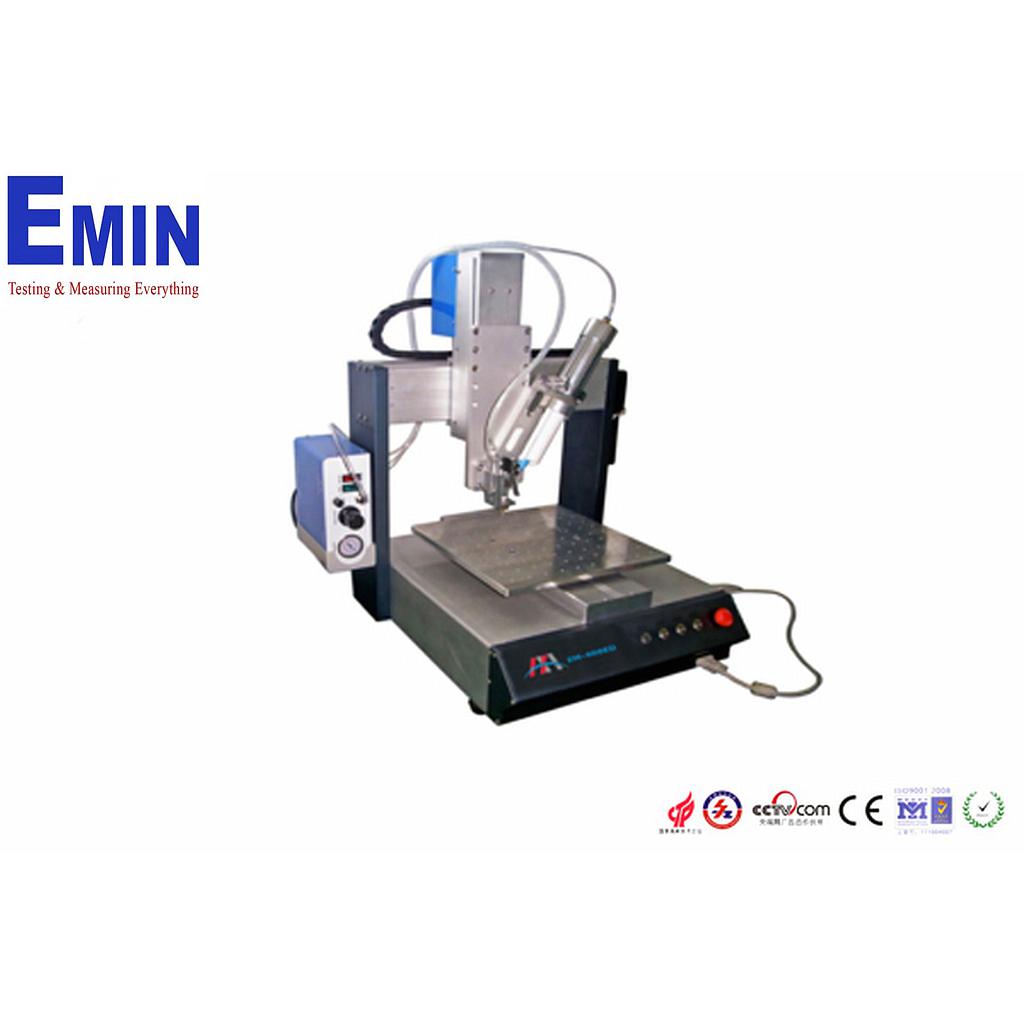

Manufacture: ZHUOMAO
Model: ZM-400ED
Made in: China
Warranty : 12 months
Work area: 400(X) *400(Y) *100(Z)
Size: 590(L)*628(W)*679(H)
Y/Z Max load: 7kg/3kg
Travel speed: Max. 400mm/sec(XY)/200mm/sec(Z)
Drive mode: Stepping motor+ belt+ precise linear guide rail
Repeatability: ±0.03mm
Program capacity: 999 parameter files(65535 points per file)
Operation system: LCD panel /handhold programming device
Movement pattern: Point to point in XYZ axis, Continuous line, arc
I/O signal ports: 4 inputs/4 outputs
Power supply: AC220V 50/60Hz 0.5kw
Work condition: Temperature 0-40℃; humidity 20-90%
Weight: About45kg
Features and Function
1, Operation with handheld LCD panel .It is easy to program and learn.
2, It can draw points, lines, arc, and circle and, even irregular curve by consecutive interpolation and realize any 3D non planar trajectory path.
3, Excellent teaching functions. Support inserting and group editing of array, graphical browsing, three dimensional elliptic, common graphical library.
4, MiniSD file storage device with high speed and 2G capacities can store 999 dispensing process documents
5, Glue amount, speed of glue dispensing, injecting time and halting time can be set up with parameters
6, With Second special dispensing controller, glue outflow is quite stable without leaking and dripping.
7, The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8, Powerful compatibility with PC. Support importing the popular design software, like Auto CAD, Coral Draw. Together with the software Logo shop, it can generate and output all kinds of formats file, like NC, .AI, .DXF, .JPG, .BMP, scanner, etc
9, It is suitable for fluid glue, such as UV, AB glue, COB (black glue), white glue, EMI conductive
Glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,
Transparent paint, screw fixative and so on.
