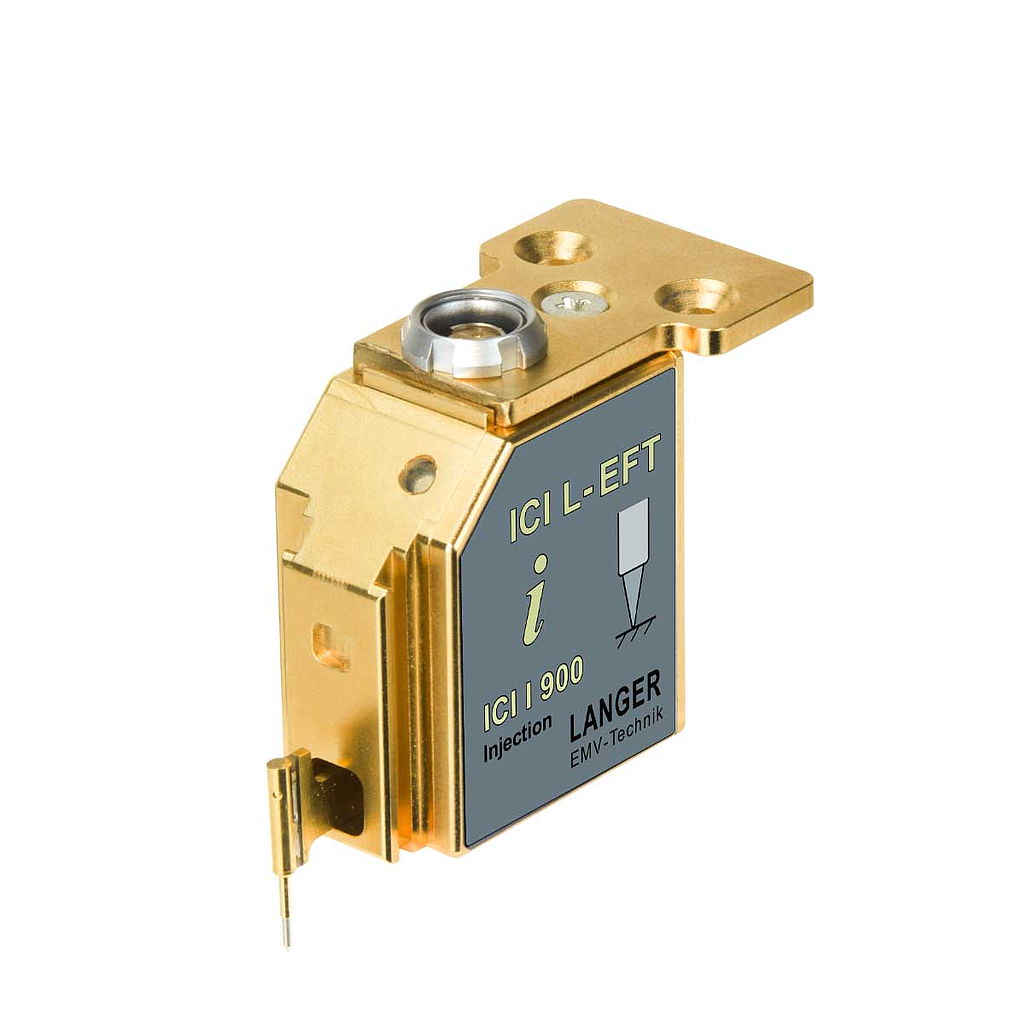

LANGER EMV-Technik ICI I900 L-EFT 脉冲电流源（FBBI）
制造商: LANGER EMV-Technik Model: ICI I900 L-EFT - 联系
Technical parameters:
Probe head: Spring Pin
Max. current (1 Ω load): 4A
Pulse parameter:
Rise time: < 2 ns
Repetition frequency: 0.1 Hz - 20 kHz
Polarity (set by software): + / - / alternating
Measuring output: 50 Ω
Trigger-pulse delay (Bypass Mode - Delay Line):
min. Trigger-pulse delay (typ.): 70 ns
max. Trigger-pulse delay (typ.): 420 ns
max. Jitter (typ.): ± 1 ns
Supply voltage: BPS 202
Weight: 70 g
Sizes (L x W x H): (26 x 43 x 53) mm
