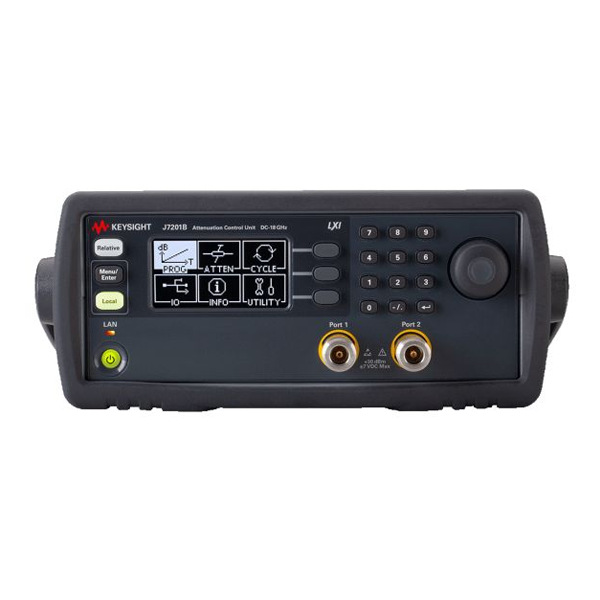

KEYSIGHT J7201B Attenuation Control Unit (18 GHz)
制造商: KEYSIGHT Model: J7201B - 联系
Frequency range: DC to 18 GHz
Attenuation range: 0 to 121 dB
Attenuation step size: 1, 5, 10 dB
Insertion loss: (at 0 dB) DC to 6 GHz: 2.5 dB
6 to 18 GHz: 5.0 dB
Return loss: (VSWR) DC to 6 GHz: 14 dB (1.50)
6 to 18 GHz: 10 dB (1.90)
RF repeatability per section: 0.03 dB typical
Maximum input power: 1 W (+30 dBm)
Switching speed: 20 ms
Operating life 5 million cycles
Connectivity: GPIB/USB/LAN (LXI Class C)
Connector type: SMA/Type-N (f)
