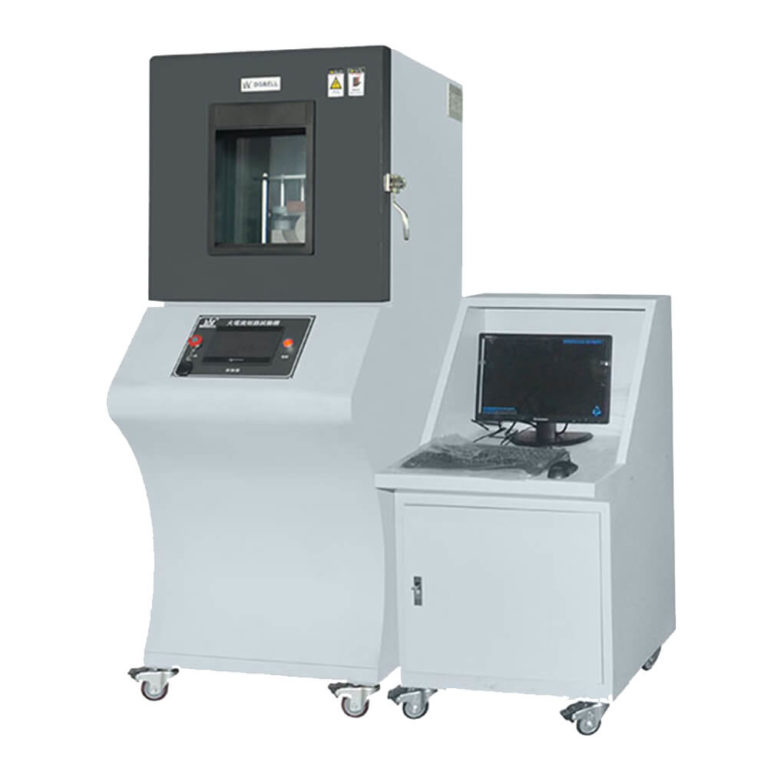

DGBell BE-XL-15000A 大电流蓄电池短路试验装置 (16000A, 0 ~ 1000V)

Max. Operating Current: 16000A

Max. Transient Current: 16000A

Temp. Range: Ambient Temperature

Inner Resistance: ＜1mΩ, ＜5mΩ, ＜10mΩ, ＜20mΩ, ＜50mΩ,＜100mΩ (Optional)

Control Mode: Close PLC touch screen control + computer remote control + remote control

External Dimension: W700xD1050xH1830mm

Explosion-proof Cabinet Dimension: W2000xD3000xH2000mm (Option)

Voltage Measurement Range: 0~1000V

Short Circuit Response Time: ≦20ms

Data Interface: USB, Data card, etc…

Safety device: Video monitor system, explosion protection system, smoke exhaust system, smoke alarm device, explosion proof lighting device, etc.

Data Acquisition Module: Independent remote acquisition and quarantine, multi-voltage/temperature/current acquisition channels ensure data accuracy. Acquisition frequency 100HZ

Short Circuit Method: Pneumatic + vacuum arc extinguishing

Safety Alarm device: Electric leakage, over-current protection, abnormal sound-light alarm, smoke alarm, dual protection system, etc.

Testing Fixture: Customize according to actual testing condition
