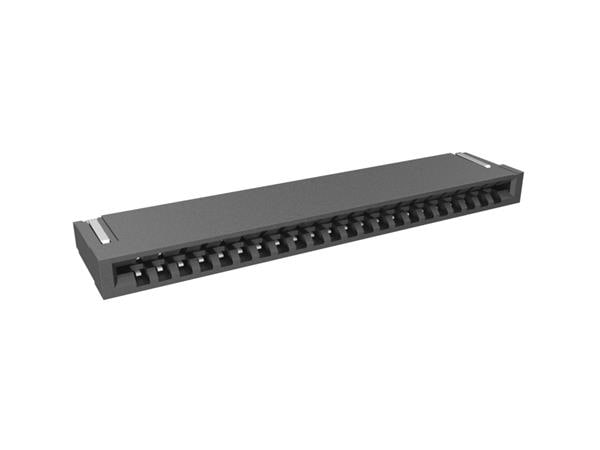

Amphenol FCI HFW22R-2STE1H1LF Headers 1.00mm Flex Connector, HFW-R series, 22 Position, Top Side Contact, Side Entry Surface Mount Non-ZIF Connector, Tin plated Terminals, Halogen free.
制造商: Amphenol FCI Model: HFW22R-2STE1H1LF - 联系
Pitch: 1 mm
Unit Weight: 304.360 mg
Housing Color: Black
Actuation Type: Non ZIF
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Voltage Rating: 100 VAC, VDC
Contact Plating: Tin
Contact Location: Top Contact
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic (TP)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Number of Positions: 22 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
