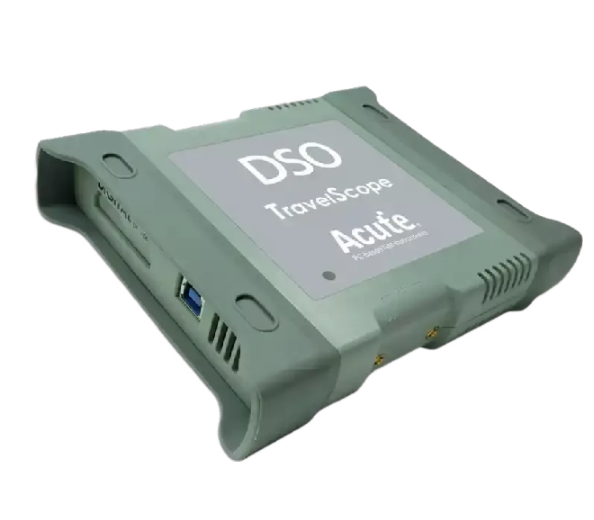

Acute TS3124E TravelScope DSO 示波器 (200MHz, 4CH, 1GS/s)

Power source: USB bus-power (+5V)

Static power consumption: 4.5W

Max power consumption: 7.7W

Acquisition Mode: Sample, Average, Envelope[*], Peak detect[*], High resolution

8 bits Sampling [Record length]: 1 Ch @ 1 GS/s [512 Mpts]；2 Ch @ 500 MS/s [256 Mpts]；4 Ch @ 250 MS/s [128 Mpts]

Input channels: 4

Input coupling: AC/DC

Input impedance: 1 MΩ ∥ <19 pF

Overvoltage protection: ± 100 V (DC+AC peak)

Ch-Ch isolation: 50dB @DC to 100MHz; 40dB @ 100MHz to 200MHz

Ch-Ch skew: 100 ps between two channels with the same scale & coupling settings

Bandwidth: 200 MHz

Rise time: 1.75 ns @ 200 MHz; 3.5 ns @ 100 MHz; 7 ns @ 50 MHz

Resolution: 8

Input sensitivity: 2 mV/div to 10 V/div

Offset range:

±150 V @ 2, 5, 10 V/div;

±15 V @ 0.2, 0.5, 1 V/div;

±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div

DC accuracy: ±3% of Full-Scale

Bandwidth limit: 20 MHz, 100 MHz or Full

Protocol Trigger / Decode: N/A

Electrical Validation (Protocol): N/A

Cascade: N/A
