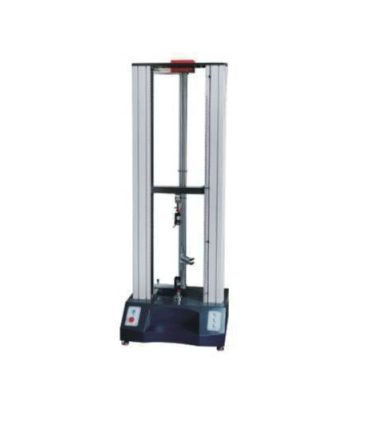

Machine Type: Double-column (Gantry-type)
Load Range: 0–2000KN (0–2000kg optional)
Control Motor: Panasonic AC servo motor from Japan
Servo Drive: Panasonic AC AC servo drive from Japan
Test Speed: 0.01–500mm/min optional
Force Accuracy: ≤0.5%
Resolution: 1/250000
Force Unit: N, kg, Lb, KN…
Extensometer: Professional large deformation extensometer (optional)
Extensometer Accuracy: ±0.01mm (optional)
Testing Stroke: 800mm (optional)
Testing Width: 400mm (Can be customized with non-standard sizes)
Control Method: Full computer software control
Fixture Configuration: Including one set of conventional testing fixtures
Protection Device: Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Report Method: Computer print output
Power Supply Voltage: 220V / 50HZ
