Consisting of the following items:
430037-9052-000: 1 PC

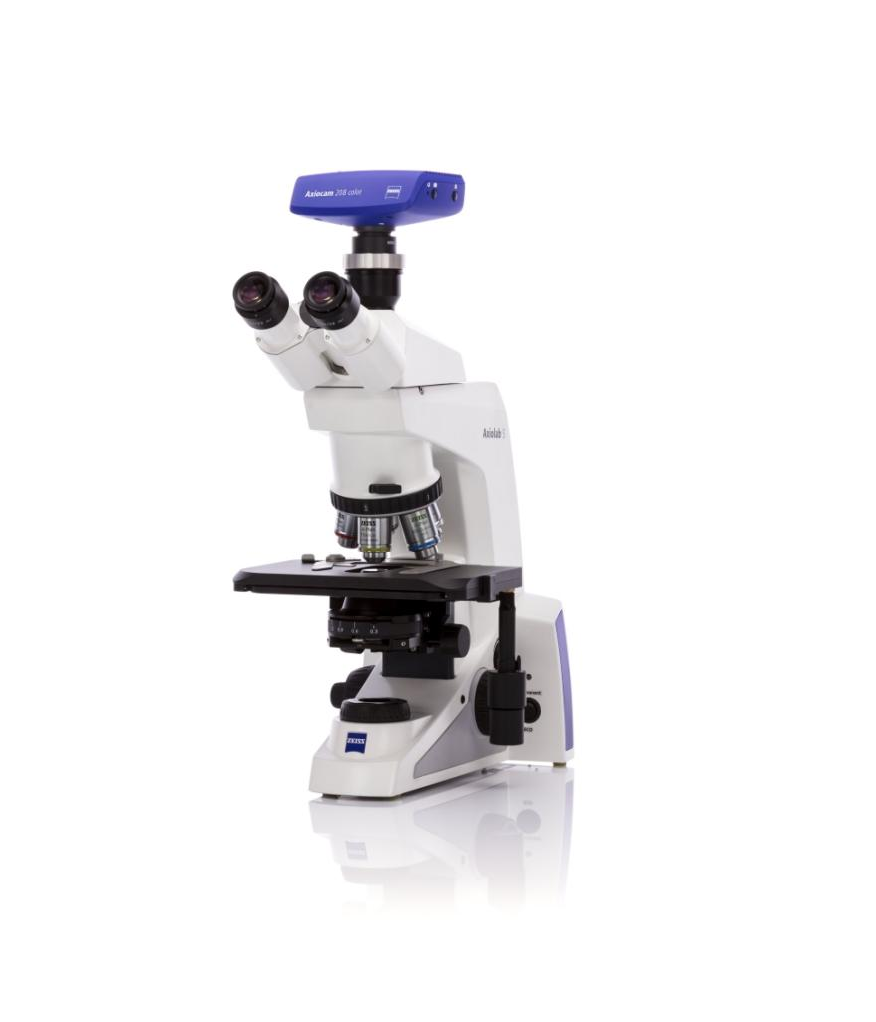

Microscope stand Axiolab 5, TL/RL, 5x HD coded, mechanical stage 75x30 R
Reflected-light illumination with white LED 10W, optional for halogen reflector lamp 12V 35W
Reflector turret 4x encoded
Z-drive with fine drive knob left and fine drive disk right, flat with scale
30 mm focus lift
Nosepiece 5x brightfield/darkfield, M27 coded
Stage and condenser carrier
Mechanical stage 75x30 R, with hardcoat anodized surface, 220 x 150 mm stage plate, right drive 135 mm (extendable by 15 mm) with friction setting
Single specimen holder for one-hand operation, spring lever left
Transmitted-light illumination with white LED 10W, optional for halogen reflector lamp 12V 35W
Integrated 24V DC 60W power unit, stabilized 100...240V AC/ 50...60Hz
USB 2.0 to PC
425520-9010-000: 1 PC
Binocular phototube 30°/23 (50:50), reversed image camera port with interface 60N
430037-9100-000: 1 PC
Base plate for microscope stand Axio Lab.A1 is screwed directly below the microscope stand; its enlarged basic area ensures increased stability (e.g. when Ergotubes and/or cameras are used)
444054-9000-000: 2 PC
Eyepiece PL 16x/16 Br. foc. With mount for reticle diam. 21 mm.
444801-0000-000: 2 PC
Eyepiece eyecup
424928-9901-000: 1 PC
Reflector module bright field ACR P&C for reflected light
424922-9901-000: 1 PC
Reflector module dark field ACR P&C for reflected light
422030-9961-000: 1 PC
Objective EC Epiplan 5x/0.13 BD M27 (FWD=11.8mm)
422040-9961-000: 1 PC
Objective EC Epiplan 10x/0.25 BD M27 (FWD=11.0mm)
422050-9961-000: 1 PC
Objective EC Epiplan 20x/0.4 BD M27 (FWD=3.2mm)
422070-9961-000: 1 PC
Objective EC Epiplan 50x/0.75 BD M27 (FWD=1.0mm)
426570-9901-000: 1 PC
Microscopy Camera Axiocam 212 color
Most versatile color camera for education, documentation and routine applications with standalone capability, USB 3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core),
Labscope and TWAIN plugin.
Camera package contains the following accessories:
USB 3.0 flash drive, Type-C and Type-A
USB 3.0 cable Type-C to Type-A
Power & signal cable camera to microscope stand compatible with
Axiolab 5 and Axioscope 5/7/Vario
Power adapter with country-specific plug
Sensor: Sony CMOS image sensor Color, Rolling Shutter
Status-LED for camera: color coded operation status
Stand-alone: Image storage format: TIFF or JPG
Video stream format: mp4
Live frame rate viaHDMI: 30 fps @ 4K/1080p
Optical interface: C-mount
Size/Weight: approx. 125 x 92 x 78mm / 700 g
Housing: Blue painted aluminum and cooling fins
Registration: CE, CSA, UKCA
Power supply: via M8interface
Power consumption: max. 36 W (24 V DC,1.5 A)
Environmental conditions: +5°C to +35°C, max. 75% relative air humidity at 35°C, no
condensation, free air circulation required, CAT II, pollution degree 2, altitude <2000m, indoor use
Supported Operating systems:
for ZEN: Windows 10 and 11 x64 and higher
for Labscope: Windows 10 and 11 x64 and higher, iOS v15 and higher,
Android 12 and higher
Supported Application Software:
ZEN 3.11 (blueedition) and higher
ZEN core 3.11 and higherQuotation Number: 776151240
Labscope v4.3 and higher (Windows, iOS and Android)
426112-0000-000: 1 PC
Camera Adapter 60N-C 2/3" 0.5x
