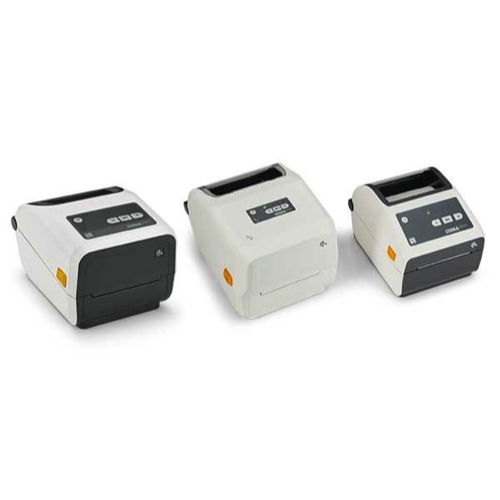

Zebra ZD421-HC Advanced Desktop Printer (203 dpi, 152mm/s)

Printing Method: Thermal Transfer, Direct Thermal

Resolution: 203 dpi

Maximum Print Width: 4.09 in./104 mm for 203 dpi

Barcodes: 1D, 2D

Print Speed: 6 in./152 mm per second

Connectivity Interfaces: Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio); Serial RS-232 auto-sensing, DB-9. Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio)

Memory: 512 MB Flash; 256MB SDRAM. 64 MB user available non-volatile memory. 8 MB user available SDRAM

Firmware: ZPL II; EPL 2; XML; ZBI; PDF Direct

Media Roll Size: Maximum outside diameter: 5.00 in./127 mm. Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard; 1.5 in. (38.1 mm), 2.0 in. (50.8 mm), and 3.0 in. (76.2 mm) using optional adapters

Ribbon Length: Roll: 984 ft. (300 m); 243 ft. (74 m). Cartridge: 243 ft. (74 m)

Dimensions (L x W x H): Direct Thermal printer version: 220.8 mm L x 177.5 mm W x 150.7 mm H. Thermal Transfer printer version: 267 mm L x 202 mm W x 189 mm H

Operating Temperature: 40° to 105° F/4.4° to 41° C

Storage Temperature: -40° to 140° F/-40° to 60° C

Humidity: 10% to 90% non-condensing

Weight: Direct Thermal printer version: 2.98 lbs./1.35 kg. Thermal Transfer printer version: 4.52 lbs./2.05 kg

Sensors: Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor

Firmware: ZPL II; EPL 2; XML; ZBI; PDF Direct

Ports: USB 2.0, USB Host. Field installable options: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio); Serial RS-232 auto-sensing, DB-9. Factory installed options: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio)

1D Barcodes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics: 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. Chinese units include SimSun Simplified Chinese font.
