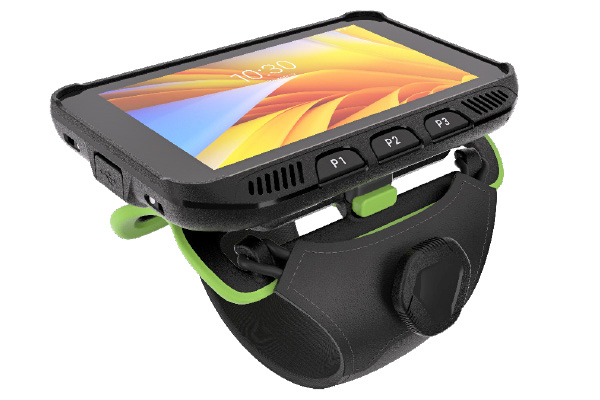

Zebra WT5400 Wearable Computer

Dimensions: 132.5mm L x 93mm W x 13.97mm D

Weight:  Standard battery: 9.0 oz (254g); Extended battery: 10.9 oz (310g)

Voice and Audio: Speaker; microphone; PTT voice

Interface Ports: One (1) USB-C (USB 3.0); two (2) charge pogo pads on each side

Decoding: 1D/2D

Power: Standard battery: typical capacity — 3500mAh -4F to +122F (-20C to +50C); Extended battery (freezer rated4): typical capacity — 5000mAh -22F to +122F (-30C to +50C)

CPU: Qualcomm™ QCS4490 octa-core; 2.4 GHz

Operating System: Android; for supported Android versions

Memory: 6 GB RAM; 64 GB Flash

Operating Temperature: -30° C ~ +50° C

Storage Temperature: -40° C ~ +70° C

Humidity: 5% to 95%, non-condensing

Sealing: IP65; IP67 with battery per applicable IEC sealing specifications

Display: 4.7 inch; 720x1280; color display

Drop Spec.: Per MIL-STD 810H: 6 ft (1.8m) to concrete at (+73°F to +122°F/+23°C to +50°C);  4 ft (1.2m) to concrete across temperature (-22°F to +122°F/-30°C to +50°C) exceeding MIL-STD-810H

Buttons: Power button; touch-only model — three (3) programmable function buttons

ESD (Electrostatic Discharge): +/- 15kV air discharge; +/- 8kV direct/indirect discharge

NFC (Near Field Communication): ISO 14443 Type A and B; FeliCa and ISO 15693 cards; NFC Forum cards 1 to 5

Scanning: Compatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair. The RS5100 and RS6100 can be powered by the WT5400 using the USB-C corded adapter, with communication over Bluetooth.
