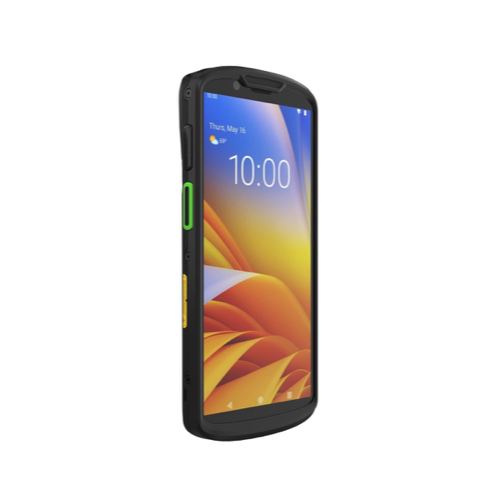

Zebra TC53e-RFID Mobile Computer

Weight: 282g (with standard battery)

Dimensions: 164.8 mm L x 77.35 mm W x 16.75 mm H

Display: 6.0-inch, High Definition (1080 x 2160); LED backlight; 600 nits; optically bonded to touch panel

Battery: Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard Capacity: 4,680 mAh (18.01 Wh); Extended Capacity: 7,000 mAh (26.95 Wh); BLE Battery: 4,680 mAh; Wireless Charging: Qi-compatible 4,680 mAh; fast charging; Warm Swap mode

Expansion Slot: User-accessible MicroSD card, supports up to 2 TB

Network Connectivity: WLAN, WPAN (Bluetooth), USB 2.0 (Back I/O - Host Only), SuperSpeed USB 3.1 (Bottom Type-C) - Host and Client

Notifications: Audible tone; multi-color LEDs; haptic feedback

Keypad: On-screen keypad and Enterprise Keyboard

Audio: Triple microphones with noise cancellation; vibration alert; dual speakers for high volume; Bluetooth wireless headset support; high-quality speakerphone; PTT (Push-to-Talk) headset support (Zebra USB-C); cellular circuit-switched voice; HD Voice; Super-wideband (SWB); Wideband and Full-band (FB) audio

Buttons: Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated PTT button, volume up/down buttons, and trigger handle button via Back I/O

CPU: Qualcomm 4490 Kryo Octa-core, 2.4 GHz

Operating System: Upgradeable to Android 17

Memory:

6GB RAM / 64GB UFS Flash

8GB RAM / 64GB UFS Flash

8GB RAM / 128GB UFS Flash

Operating Temperature: -20°C to 50°C

Storage Temperature: -40°C to 70°C

Humidity: 5% to 95% non-condensing

Sealing: IP68 and IP65 with battery per applicable IEC sealing specifications

Drop Specifications:

Multiple drops from 6 ft./1.8 m to concrete over operating temperature (-20°C to 50°C) per MIL-STD 810H

Multiple drops from 5 ft./1.5 m to tile over concrete (-10°C to 50°C) per MIL-STD 810H

ESD (Electrostatic Discharge): +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge

Barcode Scanning:

SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology

SE4720 1D/2D Scan Engine

Camera: Front: 8 MP; Rear: 16 MP Auto-focus; LED flash for balanced white light; supports Torch + HDR mode (standard)

NFC: ISO 14443 Type A and B; MIFARE, FeliCa, and ISO 15693 cards; Card Emulation via Host; contactless payment support; Google Smart Tap-ready; CPoC compliant

RFID: Integrated short-range UHF RFID; 1.2 m read range; 20 tags/sec read rate; EU 865-868MHz and US 902-928MHz
