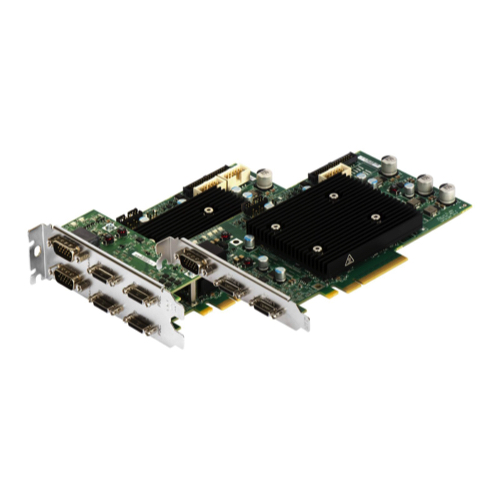

Zebra Rapixo CL Pro Vision Frame Grabbers (PCIe 2.0 x8)

Interconnect: PCIe 2.0 x8

Standard: Camera Link 2.1

Configuration:

   Two (2) independent Base Camera Link ports (dual-Base)

   One (1) Medium/Full Camera Link port (single-Full)

   Up to 80-bit mode

   Four (4) independent Base Camera Link ports (quad-Base)

   Two (2) independent Medium/Full Camera Link ports (dual-Full)

   Up to 80-bit mode

Speed: 20 MHz to 85 MHz Camera Link clock

Connectors: HDR26 (mini Camera Link)

Power output: PoCL with SafePower

Miscellaneous:

   Extended Camera Link cable length support

   Supports frame and line scan sources

Memory type: DDR3 SDRAM

Quantity: 4 GB

Purpose: Image buffering and processing

Onboard look-up tables: 8-/10-/12-bit support

Onboard Bayer interpolation: GB, BG, GR, and RG pattern support

Onboard color space conversion - Input formats: 8-/16-bit mono/Bayer, 24-/48-bit packed BGR

Onboard color space conversion - Output formats: 8-/16-bit mono, 24-/48-bit packed/planar BGR, 16-bit YUV, 32-bit BGRa

Custom processing: Aurora Imaging- or user-developed using Xilinx Vivado® Design Suite and Aurora FDK

I/O type:

   Three (3) TTL configurable auxiliary I/Os per Camera Link port

   Two (2) LVDS auxiliary inputs per Camera Link port

   One (1) LVDS auxiliary output per Camera Link port

   Two (2) opto-isolated auxiliary inputs per Camera Link port

Connectors:

   One (1) / two (2) DBHD-15 male GPIO connector(s) (dual-Base and single-Full / quad-Base and dual-Full)

   One (1) / two (2) optional additional DBHD-15 male GPIO connector(s) (dual-Base / quad-Base)

I/Os synchronization:

   One (1) quadrature rotary encoder per Camera Link port

   Four (4) 16-bits timer

Form factor: Half-length, full-height, PCIe add-in card

Dimensions (L x W x H):

   167.6 x 111.1 x 18.7 mm (6.6 x 4.38 x 0.74 in)

   Additional Camera Link module for quad-Base / dual-Full: 45.0 x 106.65 x 18.7 mm (1.77 x 4.20 x 0.74 in)

Operating temperature: 0°C to 55°C (32°F to 131°F)
