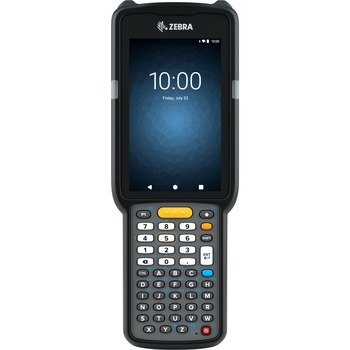

Zebra MC3300x Mobile Computer

Dimensions: MC3300x Straight Shooter (45° Scan and 0° Scan):  202.2 mm L x 74.7 mm W x 34.5 mm D

MC3300x Turret/Rotating Head: 223.4 mm L x 74.7 mm W x 34.5 mm D

 MC3300x Gun/Pistol: 202.6 mm L x 74.7 mm W x 163.9 mm D

Weight: MC3300x Straight Shooter (0° Scan): 15.7 oz./445 g; MC3300x Turret/Rotating Head: 16.2 oz./460 g; MC3300x Gun/Pistol: 18.4 oz./522 g; MC3300x (45° Scan): 15.9 oz./450 g

CPU: Qualcomm APQ8056, 1.8GHz Hex-Core, 64-bit with power optimization

Operating System: Android 8.1

Display: 4 in. WVGA LED backlight, color display

Touchscreen: Corning Gorilla® Glass touch panel with air gap

Resolution: 800 x 480 px

Optional Memory: 2GB/16GB Standard

4GB/16GB Premium

4GB/32GB Premium Plus

Camera: 13MP color camera with LED flash (optional on Straight Shooter and Turret configurations only)

NFC: ISO14443 Type A and B: FeliCa and ISO 15693 cards; Card Emulation via Host (HCE) support

Sensors: 3-axis accelerometer with MEMS gyroscope

Expandable Memory: MicroSD with 32 GB SDHC and up to 512 GB SDXC

Sim: No

Battery for MC3300 Straight Shooter (45° Scan and 0° Scan)/ and Turret (Rotating Head):: rechargeable Li-Ion, 3.6V, 7000mAh

Battery for MC3300 Gun/Pistol:: Rechargeable Li-Ion: high capacity 5200 mAh; Fast charging support (new accessories)

Operating Temperature: -4°F to 122°F/-20°C to 50°C

Storage Temperature: -40°F to 158°F/-40°C to 70°C

Humidity: 5% to 95% RH, non-condensing

Drop Specifications: Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G

Sealing: IP64 per applicable IEC sealing specifications
