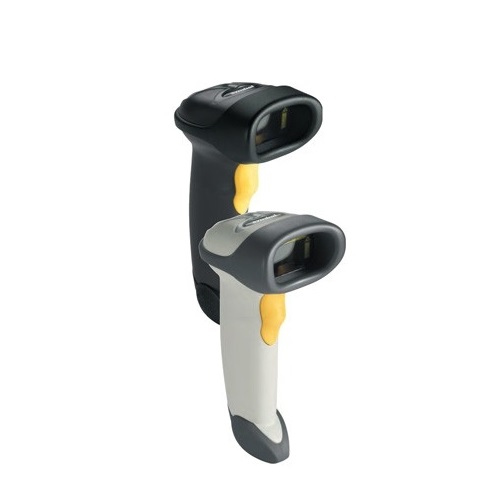

Zebra LS2208 Handheld Scanner (1D scanning)

Dimensions: 6.0in. Hx2.5in. Wx3.3in. D

15.2cm. Hx6.4cm. Wx8.5cm. D

Weight: 5.3oz./150g

Input voltage range: 4.5 to 5.5VDC host powered;

4.5 to 5.5VDC external power supply

Operating current at nominal voltage (5.0V): 175mA (typical)

Standby current (idle) at nominal voltage (5.0V): 90mA (typical)

Color: Cash register white, Twilight black

Supported host interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard support: Supports over 90 international keyboards

Light source: 650nm Laser Diode Class 2

Scan pattern: Single line

Scan speed: 100 scans per second

Scan angle: 35°

Minimum print contrast: 20% minimum reflective difference

Skew tolerance: ±10°

Pitch tolerance: ±65°

Roll tolerance: ±60°
