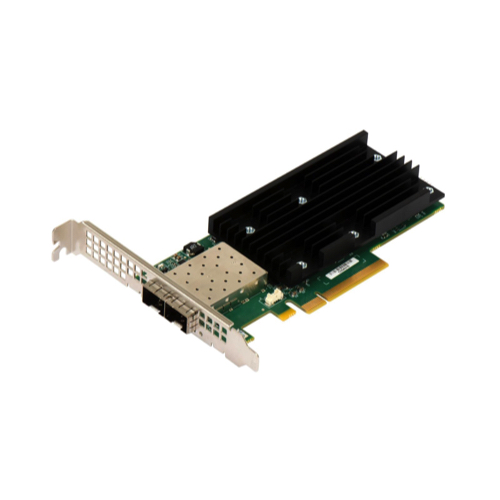

Zebra GevIQ Vision Frame Grabbers (PCIe 3.1 x8)

Interconnect: PCIe 3.1 x8

Standard: GigE Vision

Configuration: Two (2) network ports

Speed: 1 / 2.5 / 5 / 10 / 25 Gbps

Video Input: Up to 32 cameras through network switches

Connectors: SFP28

Miscellaneous: Connection-status indicator LEDs

Memory type: DDR4 SDRAM

Quantity: 4 GB

Purpose: Image buffering

Onboard look-up tables: 8-/10-/12-bit support

Onboard Bayer interpolation: GB, BG, GR, and RG pattern support

Onboard color space conversion - Input formats: 8-/16-bit mono/Bayer, 24-/48-bit packed BGR

Onboard color space conversion - Output formats: 8-/16-bit mono, 24-/48-bit packed/planar BGR, 16-bit YUV, 16-bit YCbCR, 32-bit BGRa

Physic form factor: Half-length, half-height, PCIe add-in card

Dimensions (L x W x H): 4.86 x 2.16 x 6.91 cm (5.85 x 0.85 x 2.72 in)

Operating Temperature: With passive heatsink: 0°C to 45°C (32°F to 113°F)

Relative Humidity (operating): 20% to 80% (non-condensing)

Relative Humidity (storage): 10% to 90% relative humidity (non-condensing)
