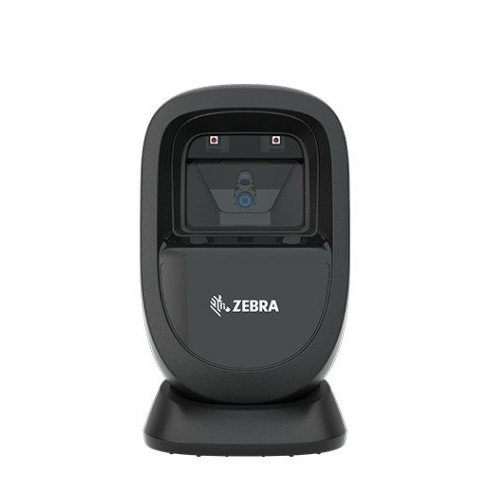

Zebra DS9300 Presentation Scanner (1D, 2D scanning)

Dimensions: 5.7in. Hx3.4in. Wx3.3in. D

14.5cm. Hx8.6cm. Wx8.3cm. D

Weight: 11.2oz./318g

Input voltage range: 4.5 to 5.5VDC host powered;

4.5 to 5.5VDC external power supply

Operating current at nominal voltage (5.0V)

- Presentation mode: 335mA

- Trigger mode: 350mA

Standby current (Idle) at nominal voltage (5.0V)

- Presentation mode: 135mA

- Trigger mode: 75mA

Color: Alpine White, Midnight Black

Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard support: Supports over 90 international keyboards

Imager Field of View: 52° H x 33° V nominal

Image sensor: 1280 x 800 pixels

Minimum print contrast: 15%

Skew tolerance: +/-60°

Pitch tolerance: +/-60°

Roll tolerance: 360°

Environmental sealing: IP52
