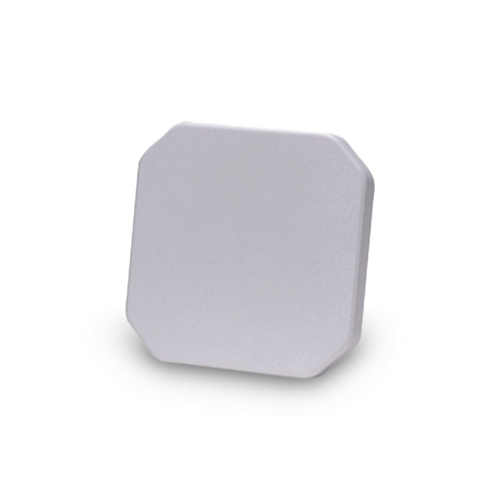

Zebra AN720 Compact, Rugged RFID Antenna (865 – 868 MHz/ 902 – 928 MHz; 10 Watts)

Polarization: Left-hand circular

Dimensions: 132.8 mm x 132.8 mm x 18.1 mm/ 5.2 in. x 5.2 in x 0.7 in.

Connector: N-Type Female

Connector Location: Rear

Mounting Options: Articulating mounting bracket included

Weight: 0.8 lbs./0.37 kg

Casing/Materials: Aluminum with white plastic cover

Frequency Ranges: EU: 865 – 868 MHz US: 902 – 928 MHz

VSWR (Return Loss): 1.5:1

Gain: US/Canada: 3.0 dBiL; EU: 3.5 dBiL

Front to Back Ratio: 8 dB

3 dB Beam Width: 100° in both planes

Maximum Power: 10 Watts

Axial Ratio: 2 dB

Operating Temperature: -25° to +70°C/-13° to +158°F

Storage Temperature: -40° to +70°C/-40° to +158°F

IP Sealing: IP67

Vibration: MIL-STD-810

Humidity: IEC-68-2-30
