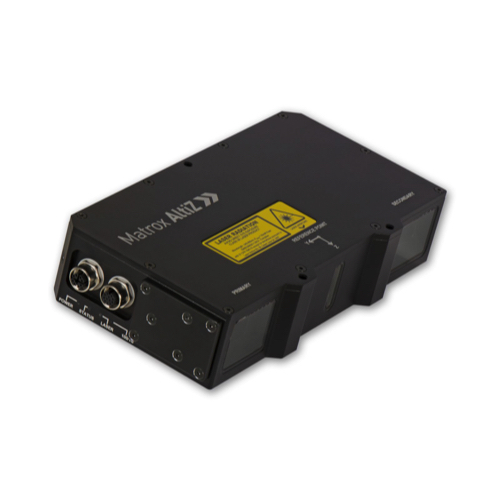

Zebra AltiZ1 AZ1D4SR High-Fidelity 3D Profile Sensor (100 mm, 660nm)

Laser color: Red (660 nm)

Working distance (from reference point): 100 mm

Profiling characteristics: 1984 points per profile

Network interface: Gigabit Ethernet

Data and command interface: GigE Vision 2.23 with GenDC 1.1

Digital I/Os: Four (4) 24 V isolated inputs / Two (2) 24 V isolated outputs (5 KHz maximum)

Trigger source(s): Quadrature encoder with A/B channels / External input trigger / Internal object detection trigger / Internal timers, counters, and/or logic blocks / External software trigger

ELECTRICAL: Input Voltage: 4.0 VDC to 5.5 VDC / Operating Power: 5 W 1000 mA @ 5 VDC

Scan type: Single-profile scan / Fixed-length scan (frame start) / Variable-length scan (frame active)

Connectors: M12-X 8-pin for network interface and power input / M12-A 12-pin for digital I/Os and alternate power input

Dimensions: 233 x 121 x 48 mm (9.17 x 4.76 x 1.89 in)

Weight: 1.5 Kg (3.3 lbs)

Operating temperature: 0°C to 45°C (32°F to 113°F)

Ventilation requirements: Natural convection

Compatible software: Aurora Design Assistant
