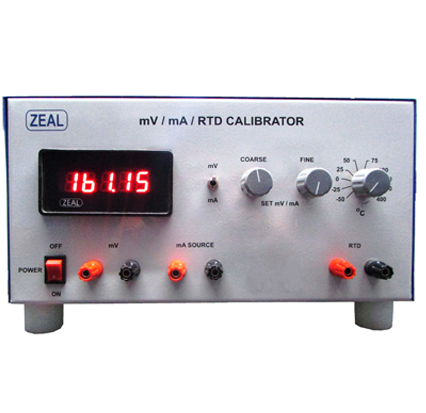

ZEAL ZMPCM mV / mA / RTD Calibrator (0 ~200 mV, 0 ~20 mA, -50°~+400°)

Input Power: 230 VAC, 50Hz / 110 VAC, 60Hz

DC Voltage Source Range: 0 to 200 mV

DC Current Source Range: 0 to 20 mA

RTD Range: -50°, -25°, 0°, +25°, +50°, +75°, +100°, +200°, +300° & +400°

Controls:

• Selector switch for mV/mA selection.

• mV/mA setting by coarse & fine multiturn potentiometers.

• RTD range selection by Decade Switch

Accuracy:

• mV/mA: 0.1% ± 3dgt

• RTD: 0.1%

Protection: Over Load & Short Circuit

Weight: 5 kg
