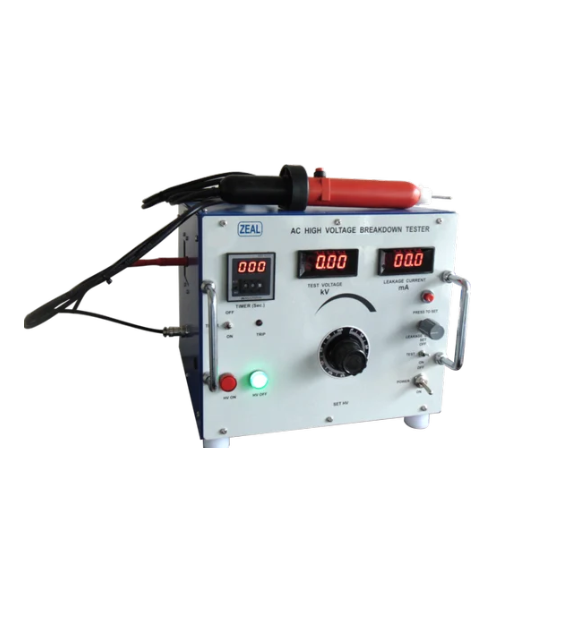

ZEAL ZMHV5A30 AC High Voltage Breakdown Tester (5kV AC, 30mA)
Manufacturer: ZEAL Model: ZMHV5A30 - Contact
Power: 230V AC ±10%, 50 Hz
Voltage Range: 0 to 5kV AC
Leakage Current Range: 0 to 30mA
Test Voltage Range Settable by knob of Variac.
Trip current settable by press to set switch and potentiometer
on mAmeter.
Metering: 3 1⁄2 digit Digital kV meter, mA meter
Accuracy: kV: 2 % of reading±3digit,
mA: 1.5%± 2 digit
Resolution :0.01kV, 0.1mA respectively
Programmable Timer: Range: 0 to 999 seconds
Indications: Trip, HV On, HV Off.
