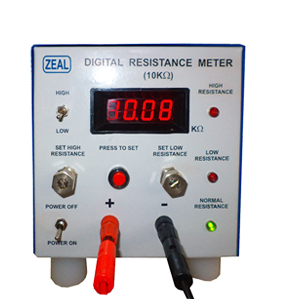

ZEAL ZMDRM Digital Resistance Meter (0 ~ 100 kΩ)

Power: 230V AC, 50Hz, ± 10%

Range:

• 0 to 100Ω

• 0 to 1k Ω

• 0 to 10 k Ω

• 0 to 100 kΩ

• Open circuit voltage : 5V typical

Setting & Indication:

• LED indicator for Low, high and normal (within specification) resistance value.

• Setting parameter: knob shall be provided to set Low and High value of resistance

Display: Digital 4 digit 7 segment display

Accuracy: 1.5% ± 3 digit

Buzzer:

It will give sound when resistance value Low or High (out of specification).

With settable limits for lower & upper acceptance of resistance by potentiometer
