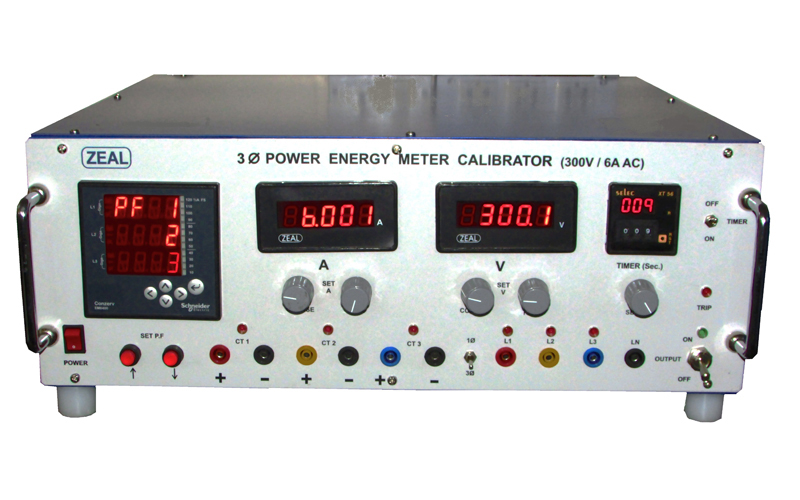

ZEAL ZM3ΦPEMC Power Meter Calibrator (3 phase, 4 wires)

Input Power: 230Volt AC

Output Voltage Ranges: 0 to 300 V (L-N) or 0 to 520V Phase to phase

Output Current Ranges: 0 to 6A per Phase

Mode: 3 Phase 4 Wires.

Output Ports: Vr, Vy, Vb, - N & Ir ( Hi, Lo ), Iy (Hi, LO), Ib ( Hi, Lo )

PF Range: 0.1 Lag to Unity to 0.1 Lead

Compliance: 20VA, at FS on V ranges

Compliance: 30VA, at FS on A channels

Frequency Parameters: 45 to 60 Hz,Resolution: 0.01 Hz

Accurac: ± 0.01 Hz.

Basic Accuracy for V, A W, WHr: 0.15% of reading With programmable timer counter to keep Output ON for fix duration. Duration Programmable in minute.

SettingVoltage, Current & Frequency by Potentiometer. Power factor by Push Button keys, Timer by thumb wheel switches.

Selectable switch for selection of 3φ or 1φ

Metering: Digital Voltmeter, Digital AC Ammeter, Universal Meter to indicate PF, W, VA, VAR of each phase also Average of all phases, WHr programmable current display to accommodate to CT ratio.

Sinusoidal Output: THD 1.5%

Protection: Overload & Short circuit.

Dimensions: (W600XD600XH270)mm

Weight: 40kg without packing.
