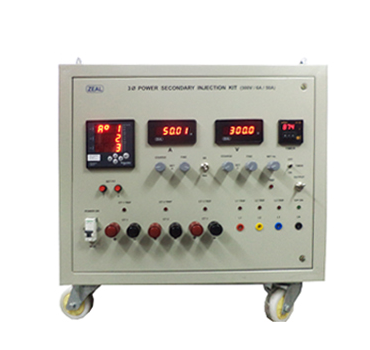

ZEAL ZM3ØSIK Secondary Injection Kit (0 ~300 V, 0 ~50 A)

Input Power: 230 VAC at 50 Hz / 110 VAC at 60 Hz

Output Voltage Range: 0 to 300 V ( L - N) per phase or 0 to 520 V Phase to Phase

Output Current Range: 0 to 50 A per phase

Output Mode: 3 Phase, 4 Wire & Single Phase.

Output Ports: Vr, Vy, Vb, -N & Ir ( Hi, Lo ), Iy ( Hi, LO ), Ib ( Hi, Lo )

Power Factor Range: 0.5 Lag to Unity to 0.5 Lead.

Compliance: 20VA, at FS on V ranges, 250VA, at FS on A ranges

Frequency: 45 to 60Hz

Timer: With programmable timer counter to keep Output ON for fix duration. Duration Programmable in minute

Metering: Digital Voltmeter, Digital AC Ammeter, Additional Power Analyzer Meter to indicate Phase to Phase Voltage, Phase to Neutral Voltage, Current of Each phase, Frequency, PF, W, VA, VAr, VAHr, Whr. Programmable current display to accommodate CT ratio

Accuracy: ± 0.15% ± 10 Digit for Voltage & Current, ± 0.05% PF,

± 0.3% for W, ± 0.02% timer

Sinusoidal Outputs: THD < 1.5%

Protections: Over Load & Short Circuit

Weight: 80 kg
