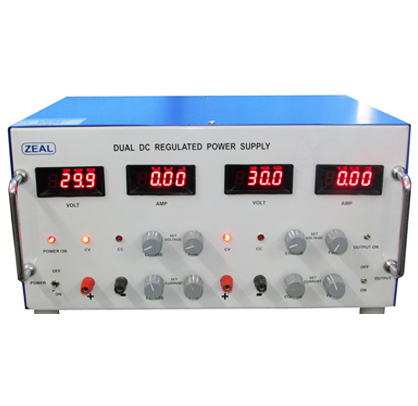

ZEAL ZM2PS Dual DC Regulated Power Supply (0 ~ 32V, 0 ~ 2A / 0 ~ 5A)

Input Power Requirement: 230 VAC, ±10%, 50Hz

Typical Output voltage Range: 0 to 32V, CV Dual

Output Current: 0 to 2A or 0 to 5A CC Dual

Maximum Power: 64 Watt or 160 Watt per channel

Load Regulation: 0.05% (from no load to full load)

Line Regulation: 0.05% (For input 230V AC ± 10%)

Ripple: 5m V rms max (with/without load)

Output Stability: 0.05% (after warm up of 20 min)

Digital meter: Separate DC Voltage & Current meters

Accuracy: For Voltage & Current: ±0.5%

Protection: Overload & Short circuit by CC operation

Operating Temperature: 0 to 45⁰ Celsius

Datasheet
