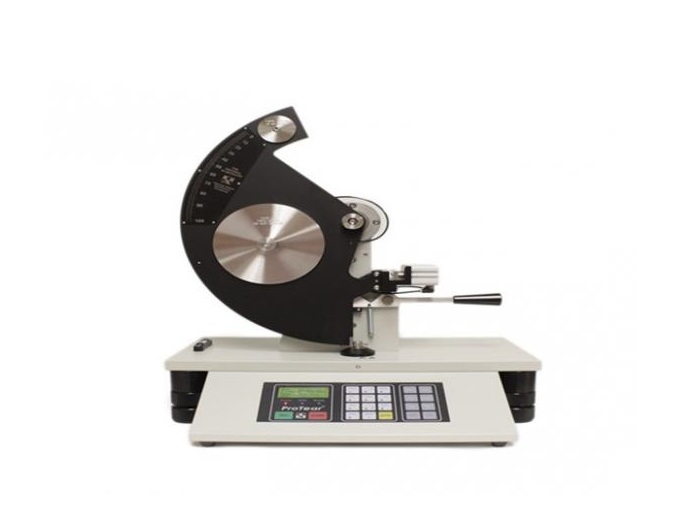

YuYang YY822 LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester

Measuring pendulum range:

16N

32N (By adding Augmenting weight)

64N (By adding Augmenting weight)

Unit of measurement: CN, N , gf , lbf

Distance between Clamps: 7.0 ± 0.25 mm

Tearing Distance: 43 ±0.15m

Slit Size: 20 ± 0.2 mm

Tollerance range: 20-80 % of each full scale, settable range or full scale

Angular resolution: high resolution digital optical encoder

Display: LCD display backlight

Blade: steel

Data port: RS232 port for printer connection and 3 pin Mini-DIN connector for PC.

Statistics: Force min.max.mean,CV%,St.Deviation,Range%

Language: English

Template Size: As per ASTM standard

Dimensions: 490 x 430 x 680 mm

Power supply: 220V,50Hz

Weight: 58KG
