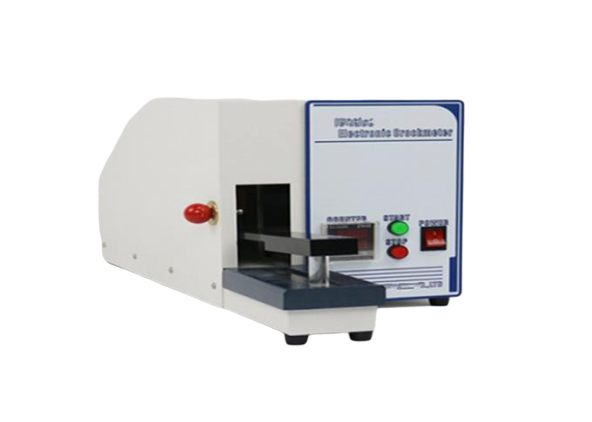

YuYang YY810 Cotton / Wool Textile Testing Equipment Electronic Crockmeter Rubbing Fastness Tester (60 times / min)

Friction head Size: Round: Φ16mm square: 19 × 25mm

Reciprocating friction and the number of first stroke: 100mm ± 1mm

Friction head downward pressure: 9 ± 0.8N

Friction velocity: from one per second (60 ± 3 beats / min)

Test bed mat material thickness: 1 ~ 1.5mm (thin white consumption)

Maximum size and thickness of the sample: 220 × 110 × 5mm

Crank rotation frequency: 60 times / min

Scrub head: Standard brush

Weight: Net weight: 22KG, Gross weight: approx 30KG

Plywood box size: 91*33*29cm

Datasheet
