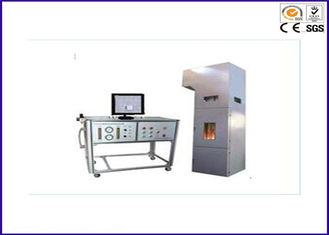

YuYang YY509 GB/T 8625 Building Material Fire Tester Difficult Flammability Tester

1. Burner: stainless steel 200*200*3.5(mm).

2. Gas flow:0~50l/MIN.

3. Air flow: 0~50l/MIN.Compressor should bring along their own.

4. Combustion gas: purity 99.5% methane, or equivalent of gas purity.　　

5. Furnace pressure measurement: the 0.5-magnitude pressure transmitter.

6. Timer: 0~99s/min/h.

7. The flue is square channel, size:500mmx500mm, and combustion chamber are interlinked, connected with external chimney, uses powerful exhaust system: this machine is equipped with powerful fan, when the test is finished, start the fan system will exhaust gas emitted. Smoke purification system(match)

8. The ignition way: high-pressure automatic ignition.

9. Test stand: W380*L380*H1000(MM), made by stainless steel.

10. Air current stabilizer: a box,set in the bottom burner. Lay at the bottom of the wire, it laid glass fiber mat.

11. Temperature and pressure information through 16 input computer, high-precision interface car dis controlled by micro-computer and out put statements.
