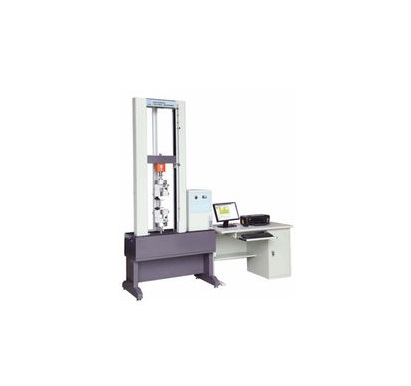

YuYang YY1307 Universal Testing Stroke 1100 mm Selectable Resolution Tensile Testing Machine (30 kN)

Capacity (optional): 100, 200, 500 N; 1, 2, 5, 10, 20, 30 kN

Unit (Switchable): kgf, lbf, N, kN, kPa, MPa

Load Resolution: 1/200,000

Load Accuracy: ±0.5%

Load Range: Rangeless (full scales at the same amplification)

Stroke (exclude the grips): 1100 mm

Effective width: 400 mm

Test Speed: 0.0001~1000 mm/min selectable

Speed Accuracy: ±0.5%

Stroke Resolution: 0.00004 mm

Sample Rate: 200 times/sec

Communication Interface: USB

Display method: U62 Dedicated Software

Motor: AC servo motor

Dimension (WxDxH):

Main Unit (Height exclusive of footpad): 111 × 64 × 233 cm

Computer / Desk: 109 × 65 × 116 cm

Weight (approx.):

Main Unit: 263 kg

Computer / Desk: 50 kg

Power: 1∮, 220V, 15A, 50Hz/60Hz or specified by user
