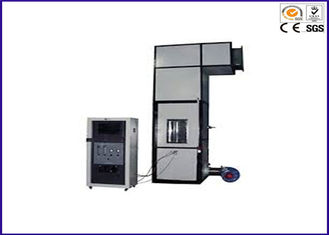

YuYang YY121 DIN 4102-15 Building Materials Difficult Flammability Lab Testing Equipment

1. Power supply: 380V AC 50HZ using gas: methane (purity over 95%)

2. Flow meter: methane: 5 ~ 45L/min adjustable, air: 3 ~ 30L/min adjustable

precision level :2.5 grade

3. The specimen size: 190 x 1000 (mm), less than 80mm thickness of specimen four as a group.

4. Thermocouple:3.0mm diameter and 1.5mm armored thermocouple

5. The burner nozzle diameter: 3.5mm,dimensions: 200 x 200 (mm) from the bottom of 1000mm

6. The combustion furnace dimensions: length * width * height (unit: mm) 1020 x 1020 x3930

7. Internal dimensions: length * width * height (unit: mm) 800 x 800 x 2000

8. Weight:1 tons
