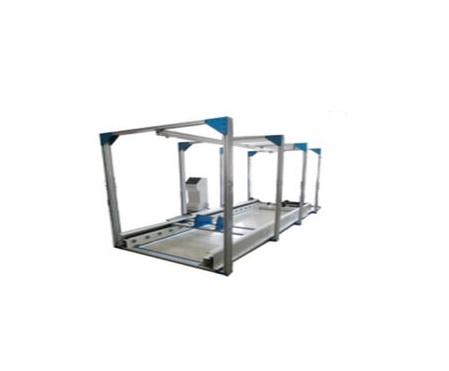

YuYang YY1122 Toys Testing Equipment for Dynamic Stability Test Impact Test

1. Control system: PLC,touch screen display the impact velocity and impact kinetic energy, test times

2. Imported servo motor, speed from 0 - the biggest only need 0.3 seconds

3. Weight model: 15 kg (cart, electric vehicles) ,12 kg (walker)

4. Step height:

50 mm high inelastic steps (children's electric cars)

40 mm high block (walker)

5. Rigid wall: thickness of 20 +/-0.5 mm (walker)

6. Test platform: 6000 x1000mm(L*W)

7. Servo motor speed double closed loop control, ensure that the impact velocity is constant, accurate

8. Weight specific protection device, ensure the weight not overturned

9. Power : AC220V, 50Hz
