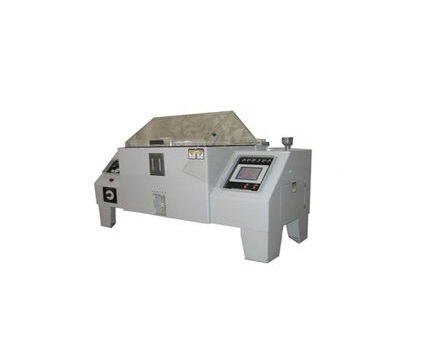

YuYang YY1015-120 Environmental Test Chambers for Electroplate Salt Spray Test Machine (120 L)

Inner Size W×H×D(cm): 120×100×50

Outside Size W×H×D(cm): 190×130×140

Equipment material: Both internal and external material is using imported P . V . C rigid plastic board ; the case cover is using transparent rigid plastic board P . V . C .

Temperature range: 35°C~55°C

Temperature fluctuations: ≤±0 . 5°C

Temperature uniformity: ≤±2°C

Temperature precision: ±1°C

Test chamber temperature: NSS ACSS 35±1°C CASS : 50±1°C

Saturated air barrel temperature: NSS ACSS 47±1°C CASS 63±1°C

Brine temperature: 35°C±1°C

Spray quantity: 1 . 0~2 . 0 ml / 80cm2 / hr

PH: NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2

Lab volume: 600L

Brine tank capacity: 40L

Power: 1AC220V , 10A1AC220V , 15AAC 1 , 220V , 30A

Multiple safety protection devices: Water shortage/ over temperature / phase protection

Standard accessories: Test salt , measure bucket , tool etc 1 set
